Superwinch

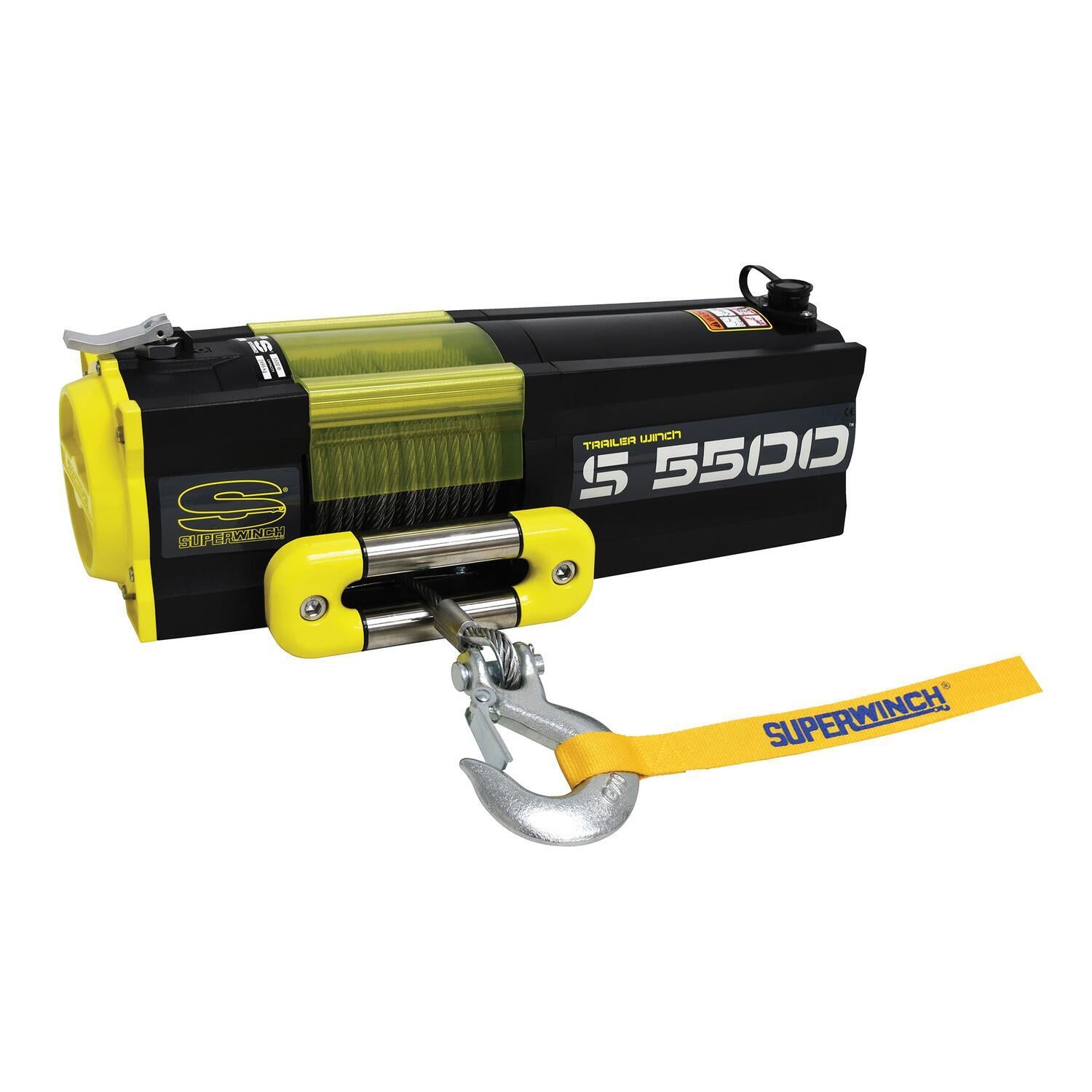

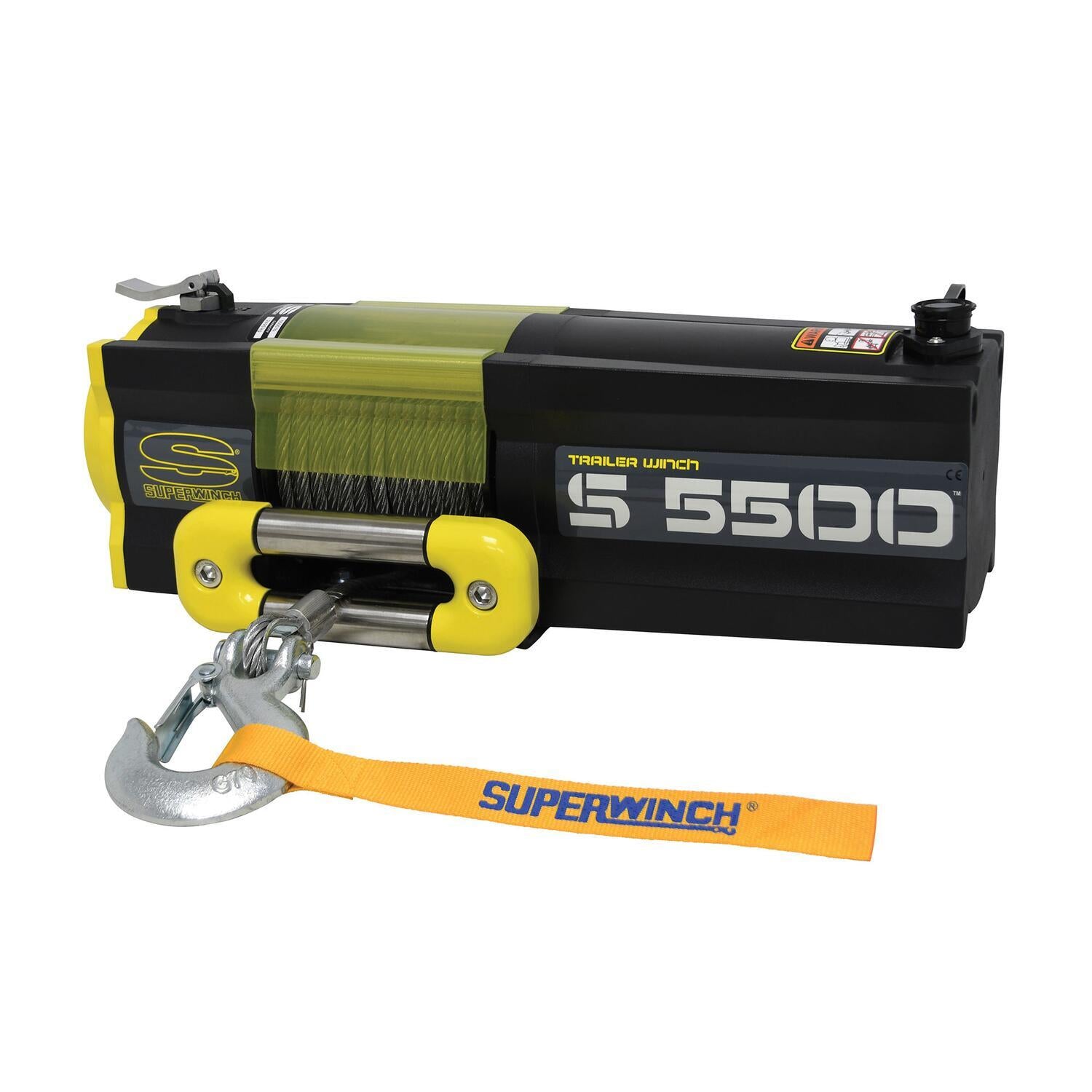

S5500 5500lb 12V DC Trailer Winch with Steel Wire Rope Yellow - 1455200
SKU:1455200
- Regular price
- $ 781.99
- Sale price
- $ 781.99
- Regular price
- $ 977.50
The S5500 Winch continues Superwinch's dominance as the leader in trailer-specific winching. The S5500 trailer winch ...
In Stock. Ships in 24-48 hours
Couldn't load pickup availability
Description

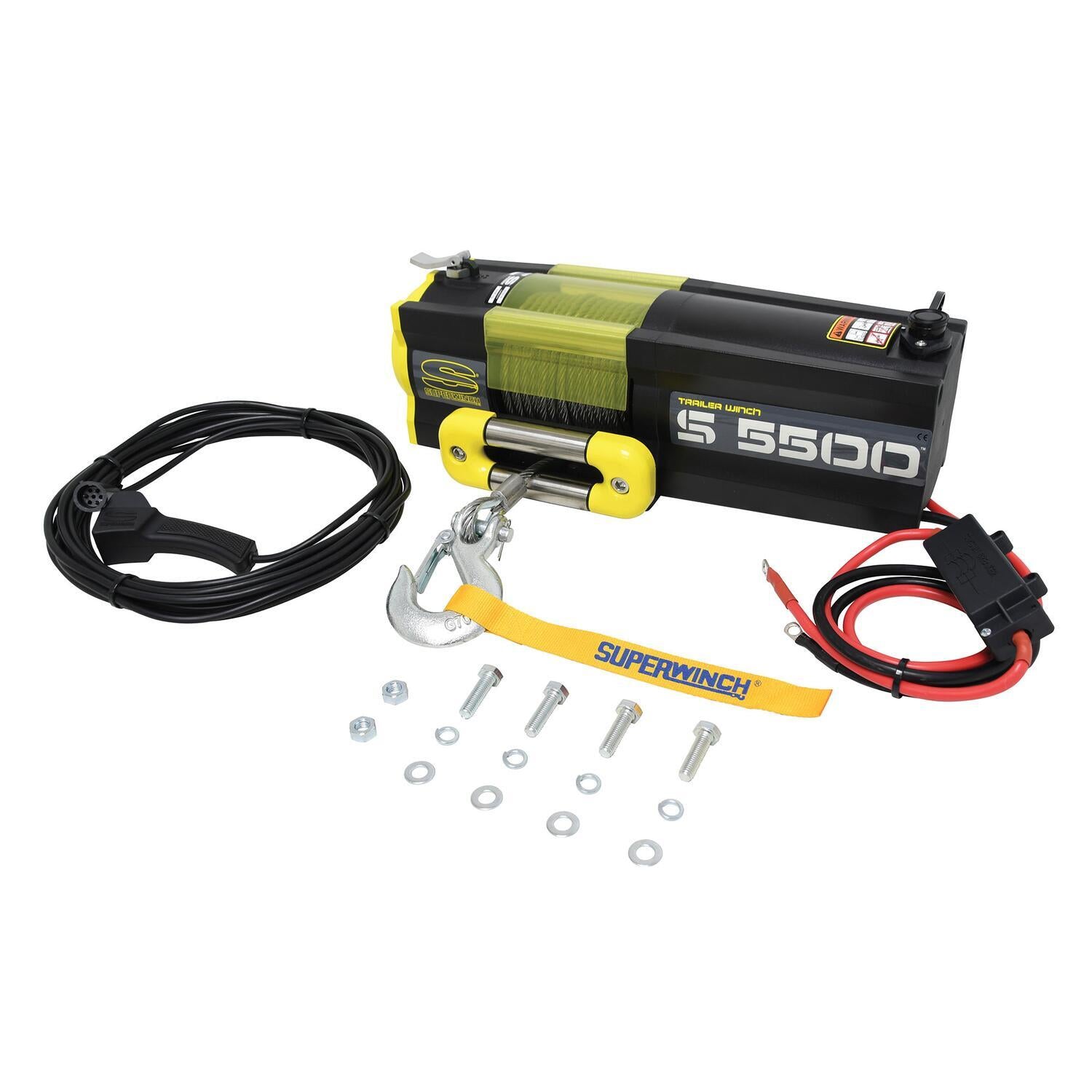

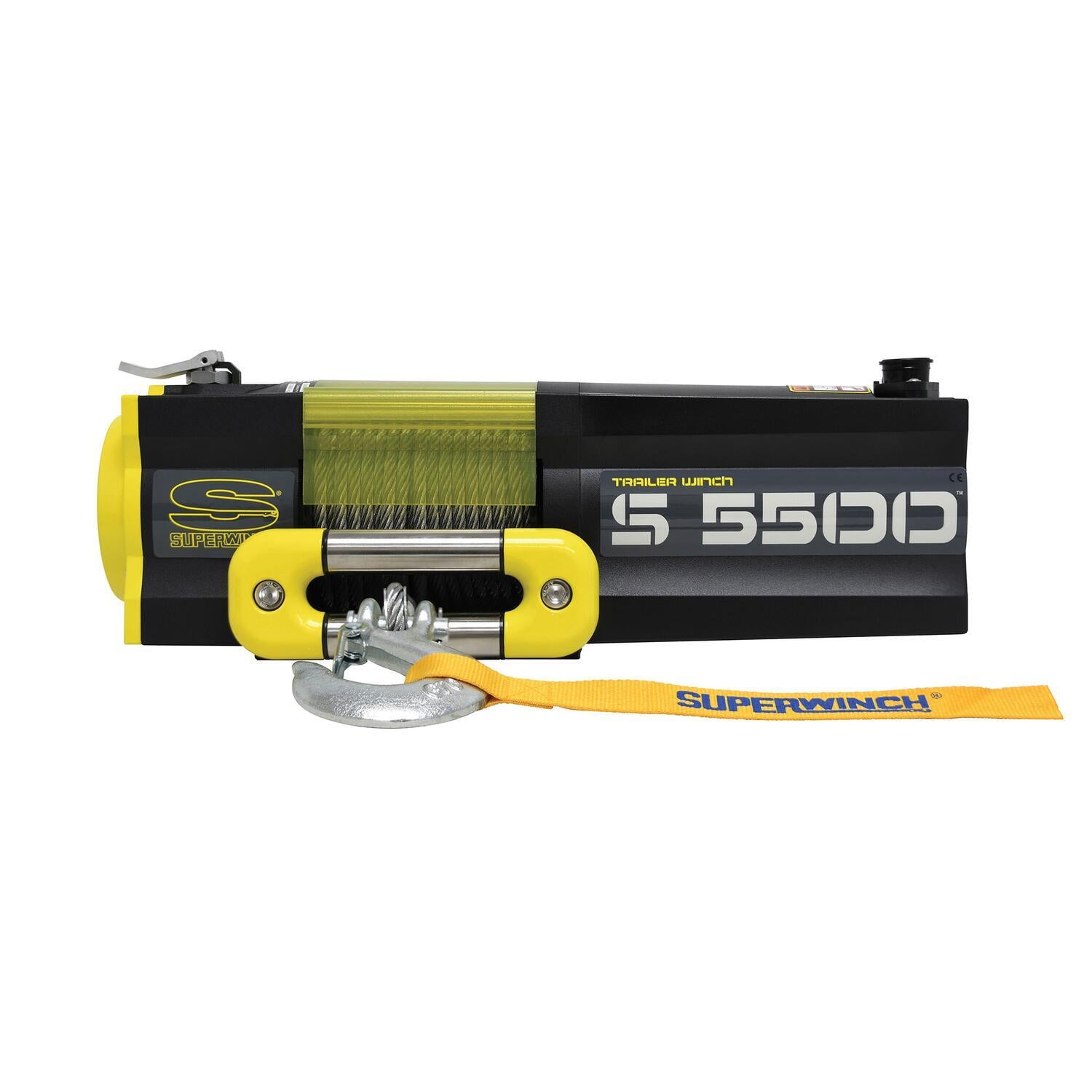

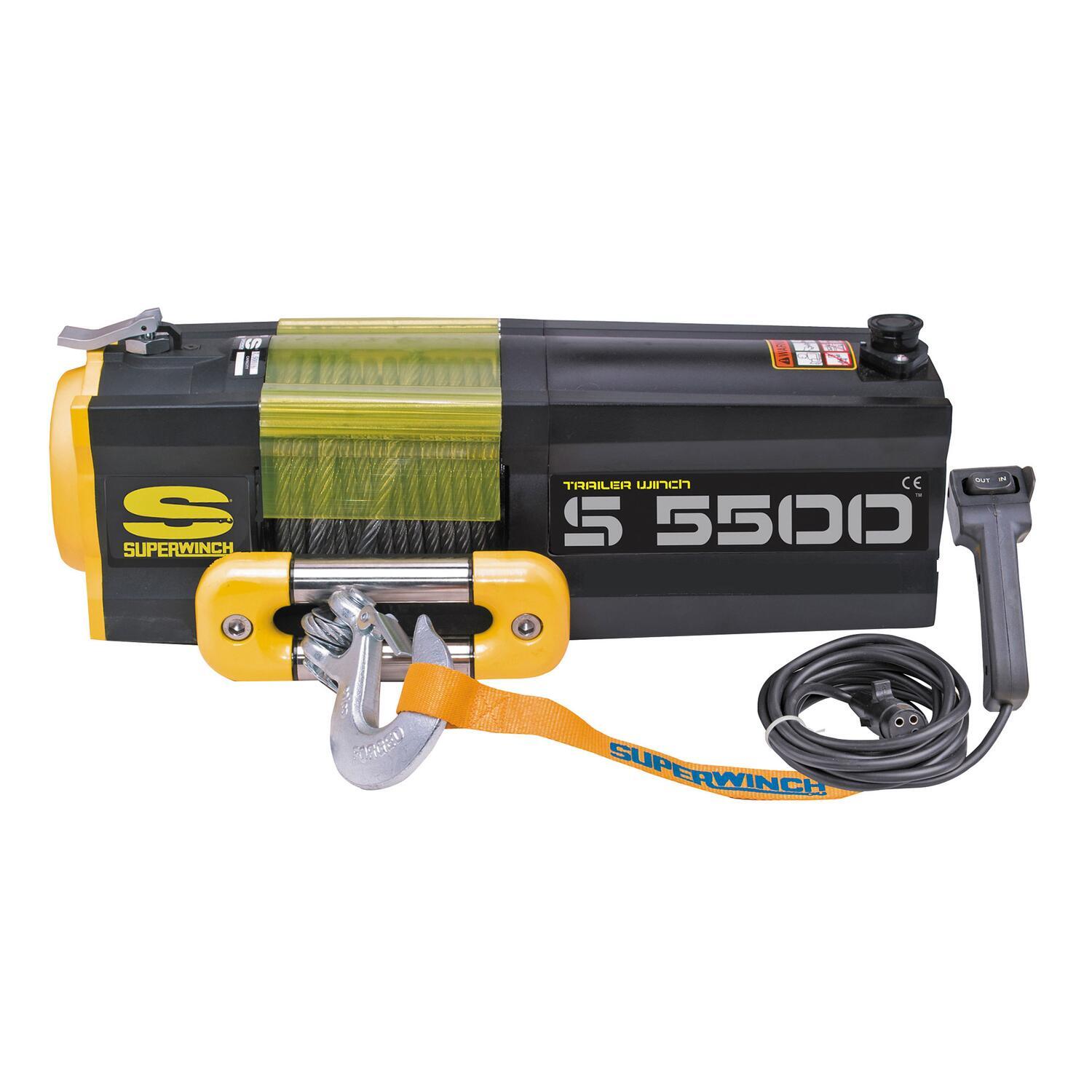

The S5500 Winch continues Superwinch's dominance as the leader in trailer-specific winching. The S5500 trailer winch easily pulls 5,500 lbs powered by its 3.6 hp permanent magnet motor, and its all steel 3-stage planetary gear box. The S5500 includes a safety tinted protective cover which protects the cable, drum and operators fingers. The machined aluminum free-spool lever can also be operated easily by foot.
FEATURES
- 5,500 lbs. capacity

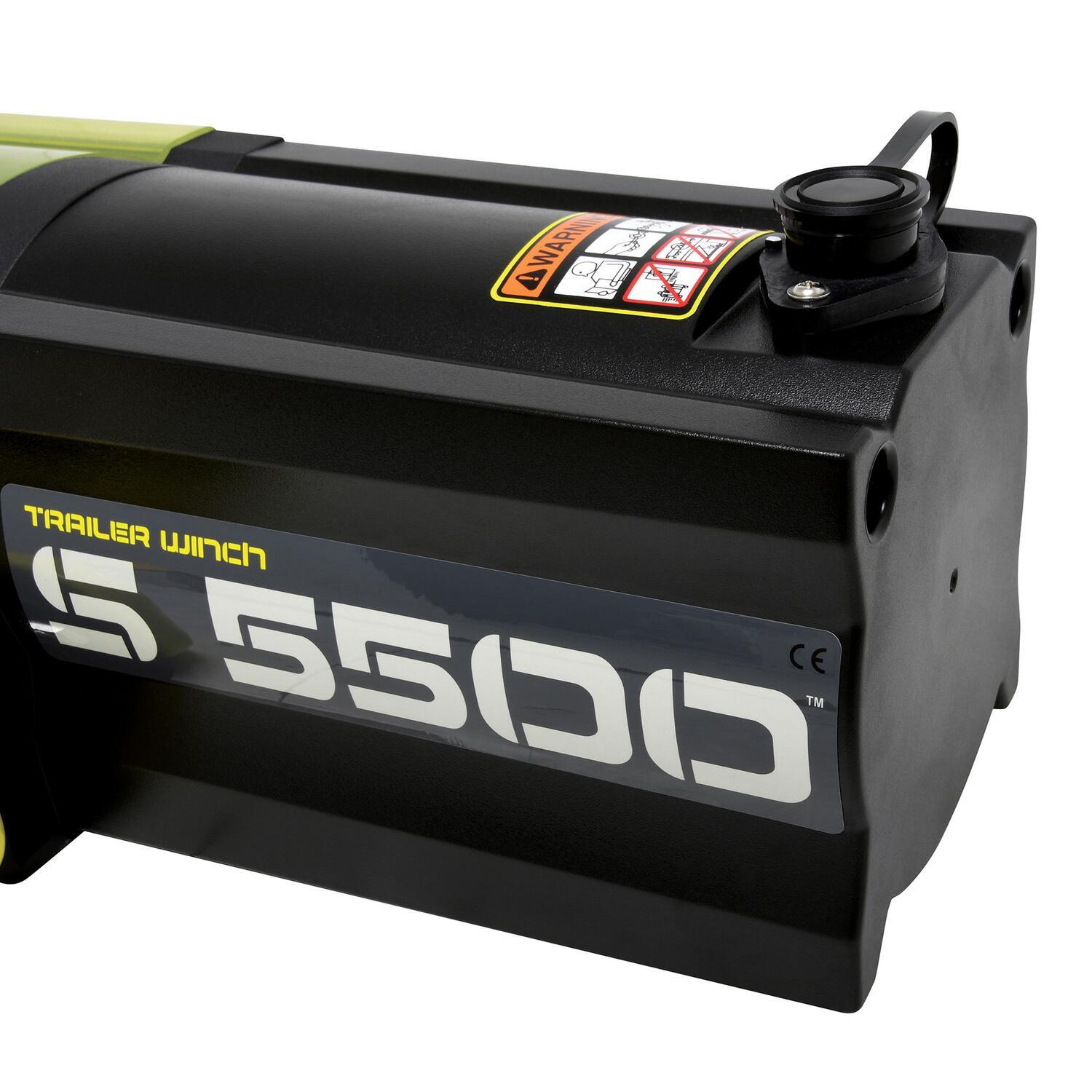

- 3.6 HP permanent magnet motor provides dynamic braking
- 3-Stage planetary gearing with 159:1 ratio

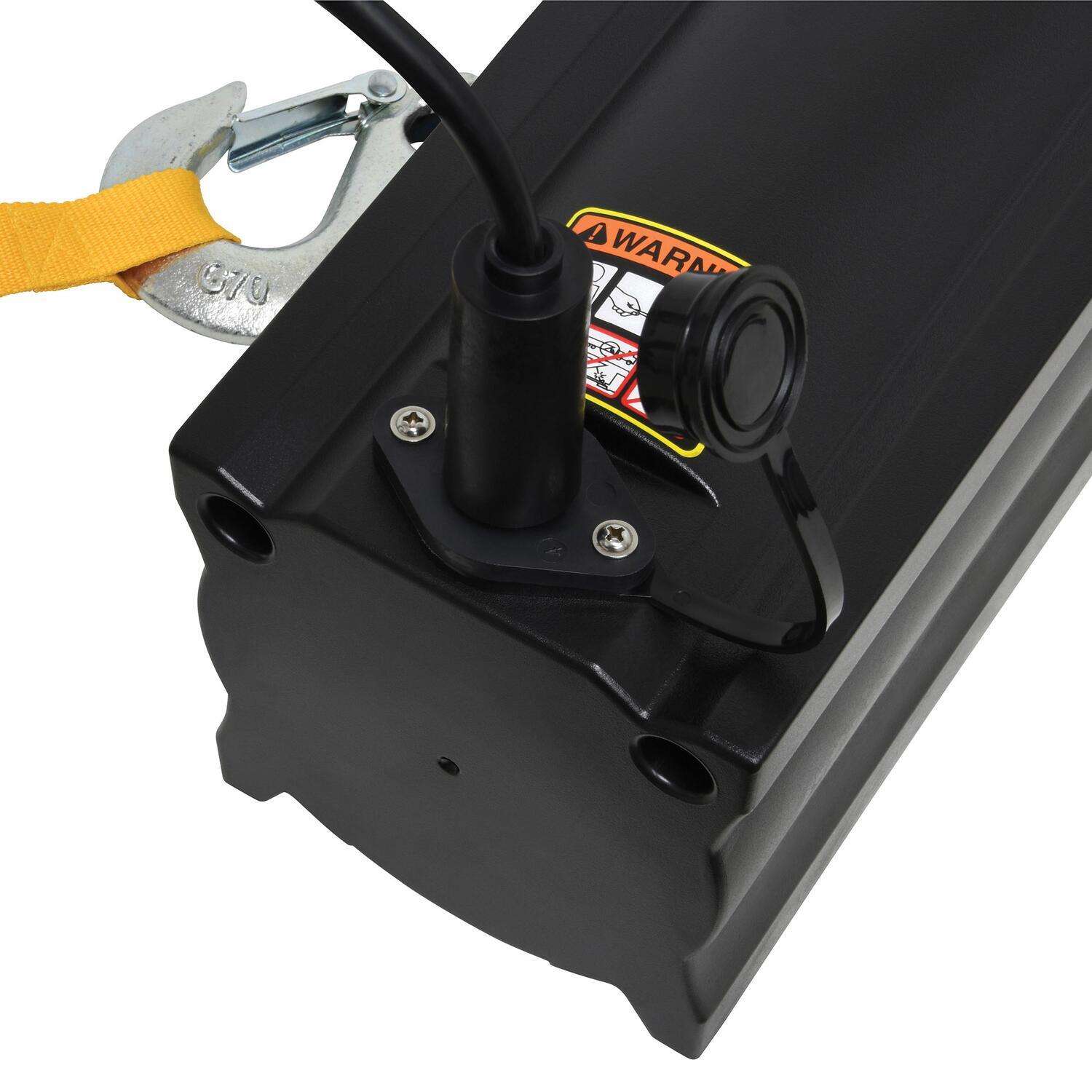

- Sealed solenoid

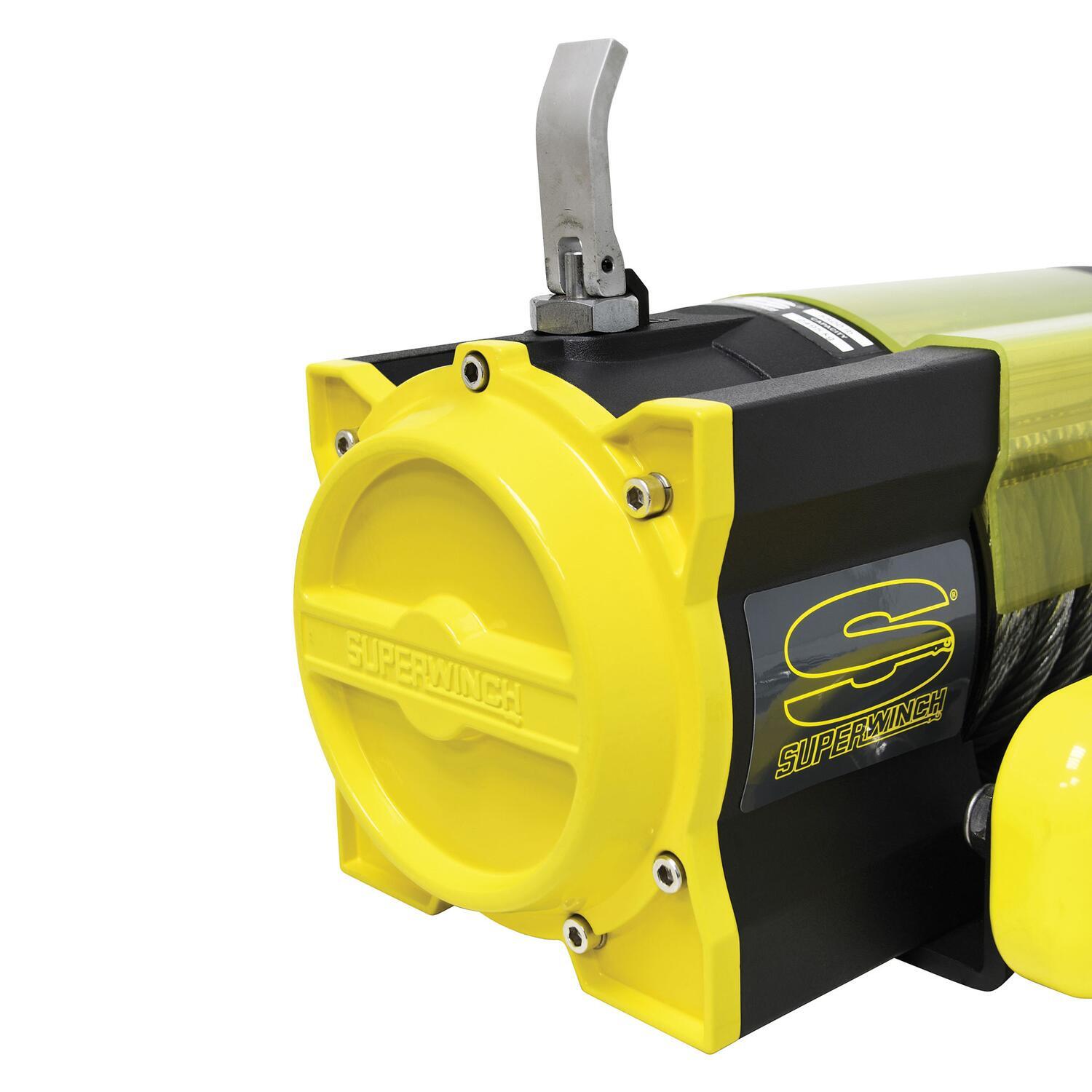

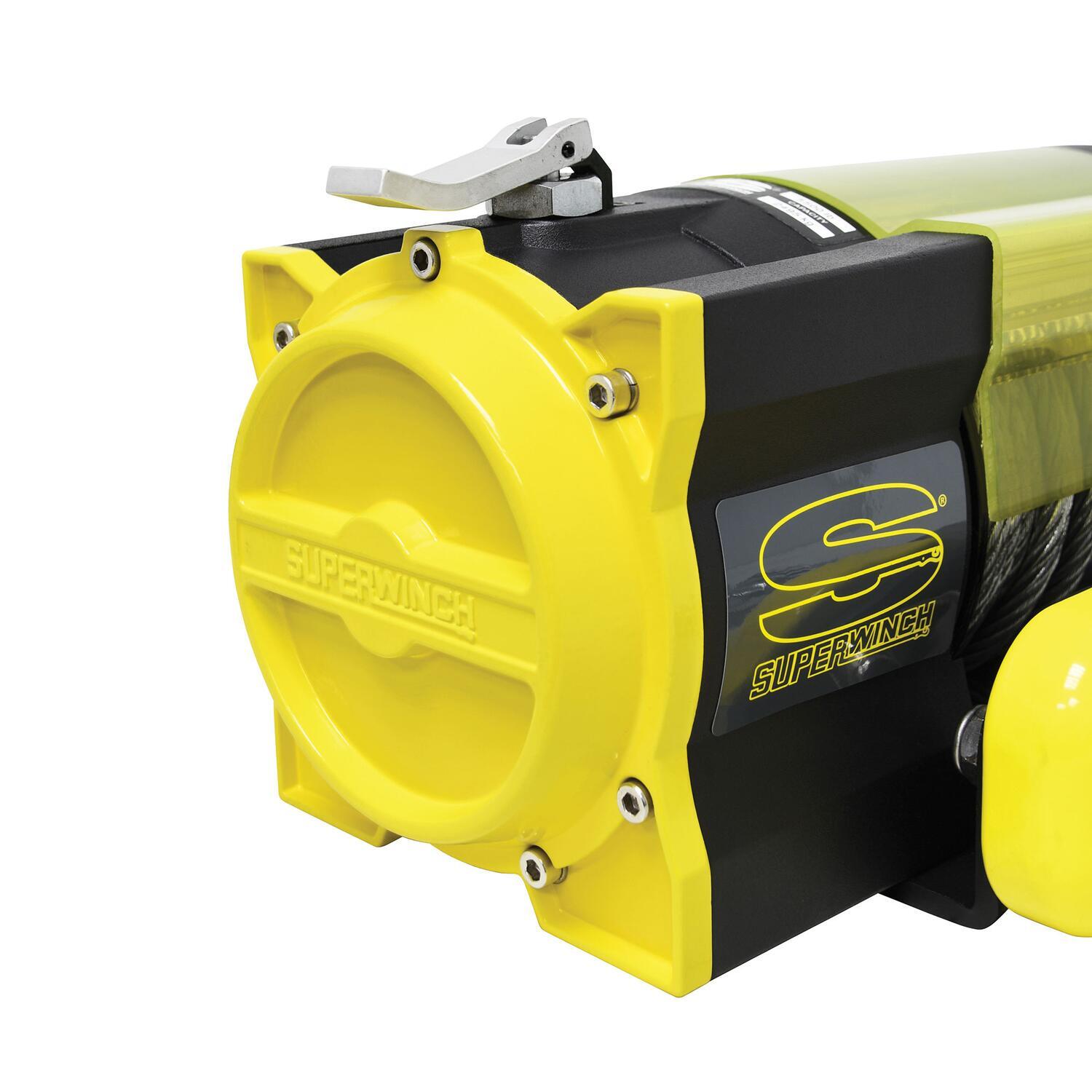

- Lever style freespool allows hand or foot operation
- Steel cut gears for better engagement and longevity
- Automatic load holding brake

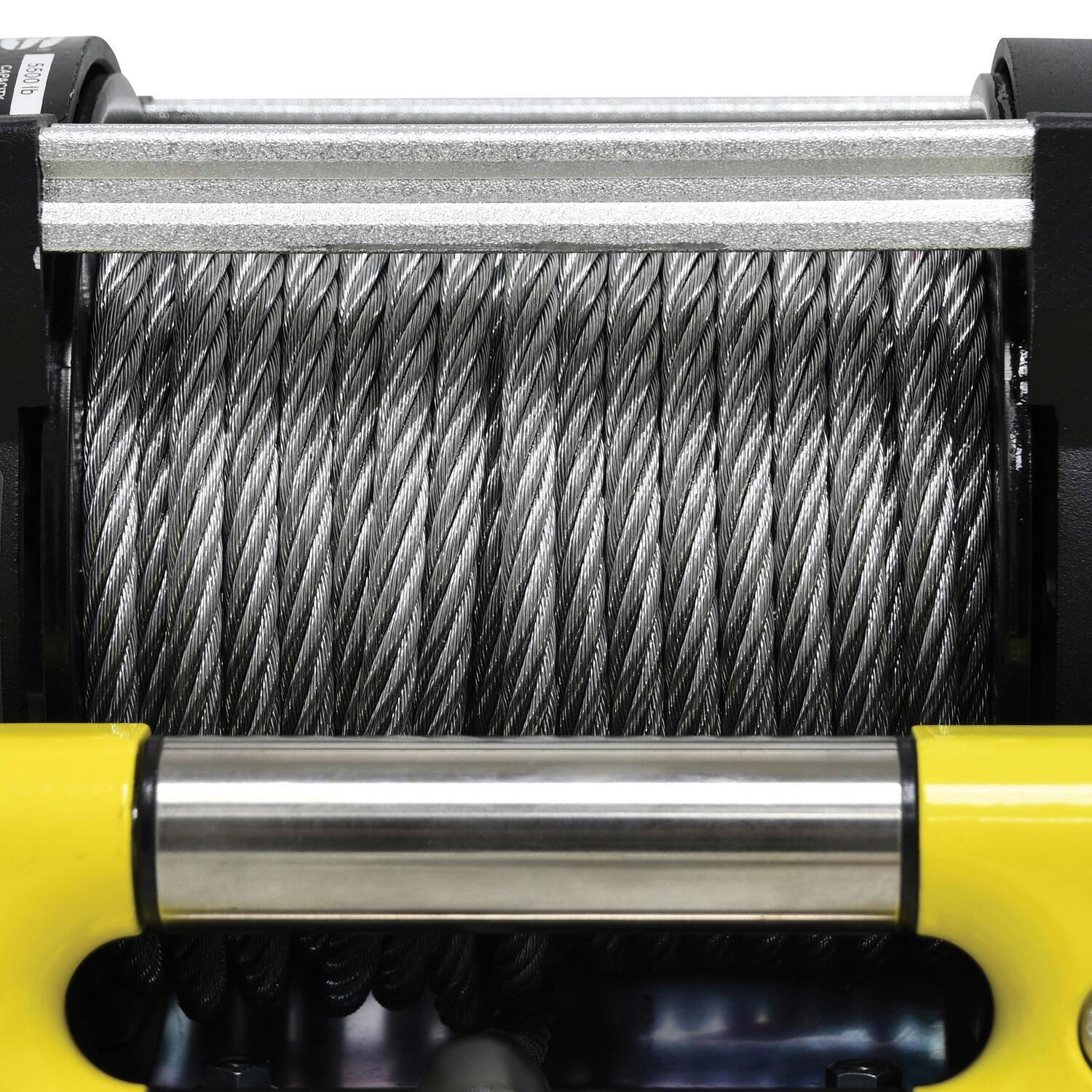

- Stainless steel 2-way roller fairlead

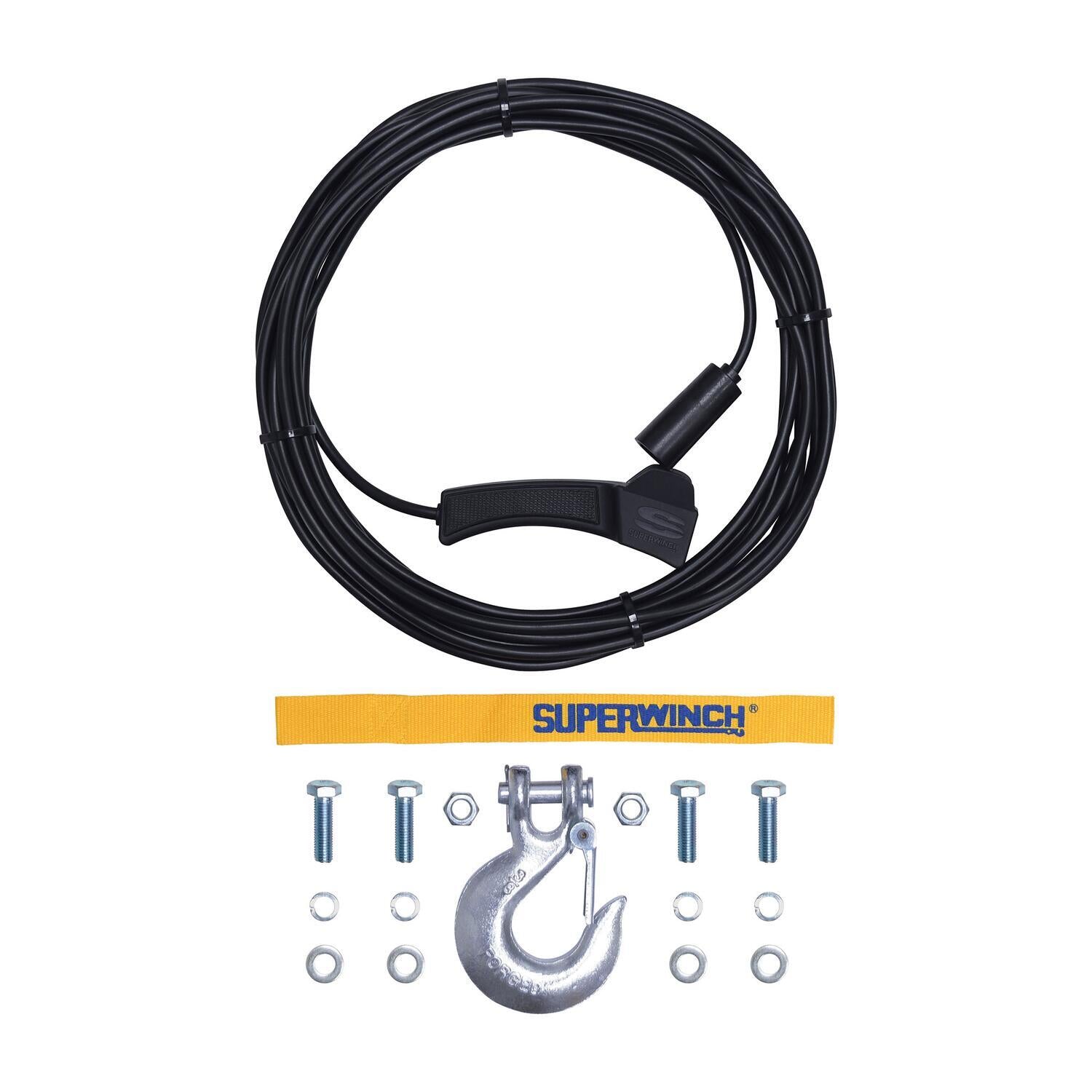

- 30 ft. wire remote
SPECIFICATIONS
| MPN | 1455200 |
| Winch Type | Electric |
| Rated Line Pull | 2,500 - 5,500 lbs |
| Voltage | 12V DC |
| Motor | 3.6 HP, pemanent magnet motor, 12V DC |
| Gear System | 3-stage planetary |
| Gear Ratio | 153:1 |
| Clutch | Kick-n-flip |
| Brake System | Mechanical, Automatic Load Holding, Outside Drum |
| Rope Material | Steel Wire |
| Rope Length | 9/32 in x 60 ft (7.14mm x 18.3m) |
| Fairlead | Strong roller-coaster fairlead/hawse hybrid |
| Remote Type | Wire |
| Mounting Bolt Pattern | 4 bolt |
| Color | Yellow |
| Winch Hook | Heavy-Duty, Clevis Pinned Latched |

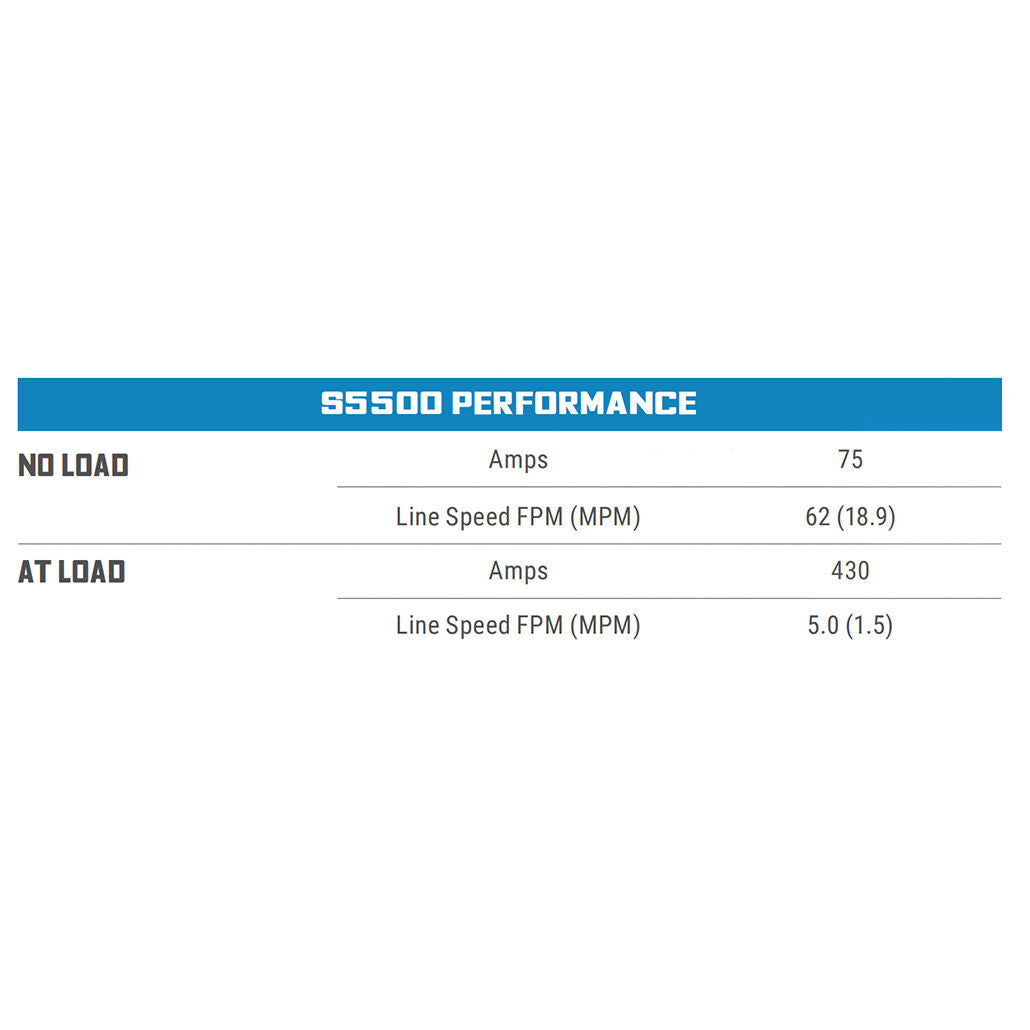

| Line Speed | 80 Amps Motor Draw/19 FPM (5.8 MPM) |
| Weight | 56.0000 |

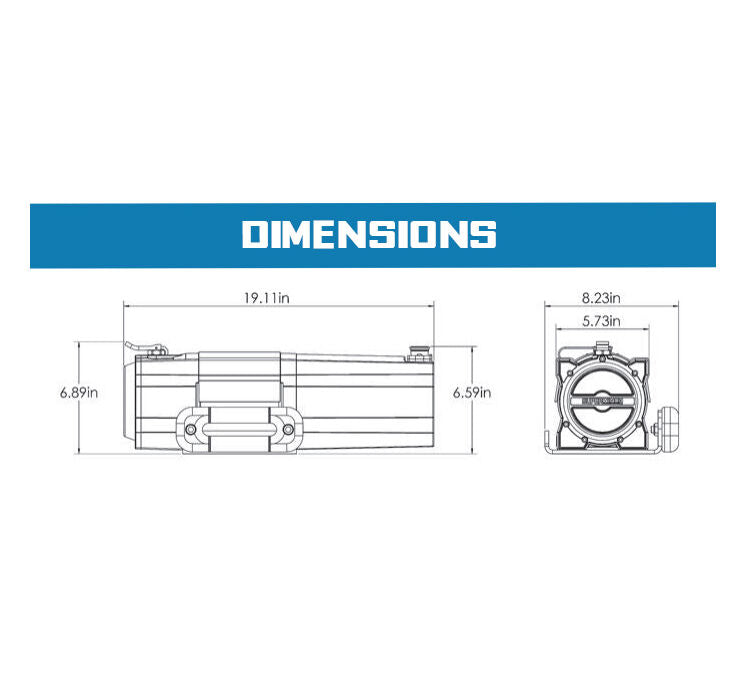

| Width | 13.00 |
| Height | 9.00 |
