Superwinch

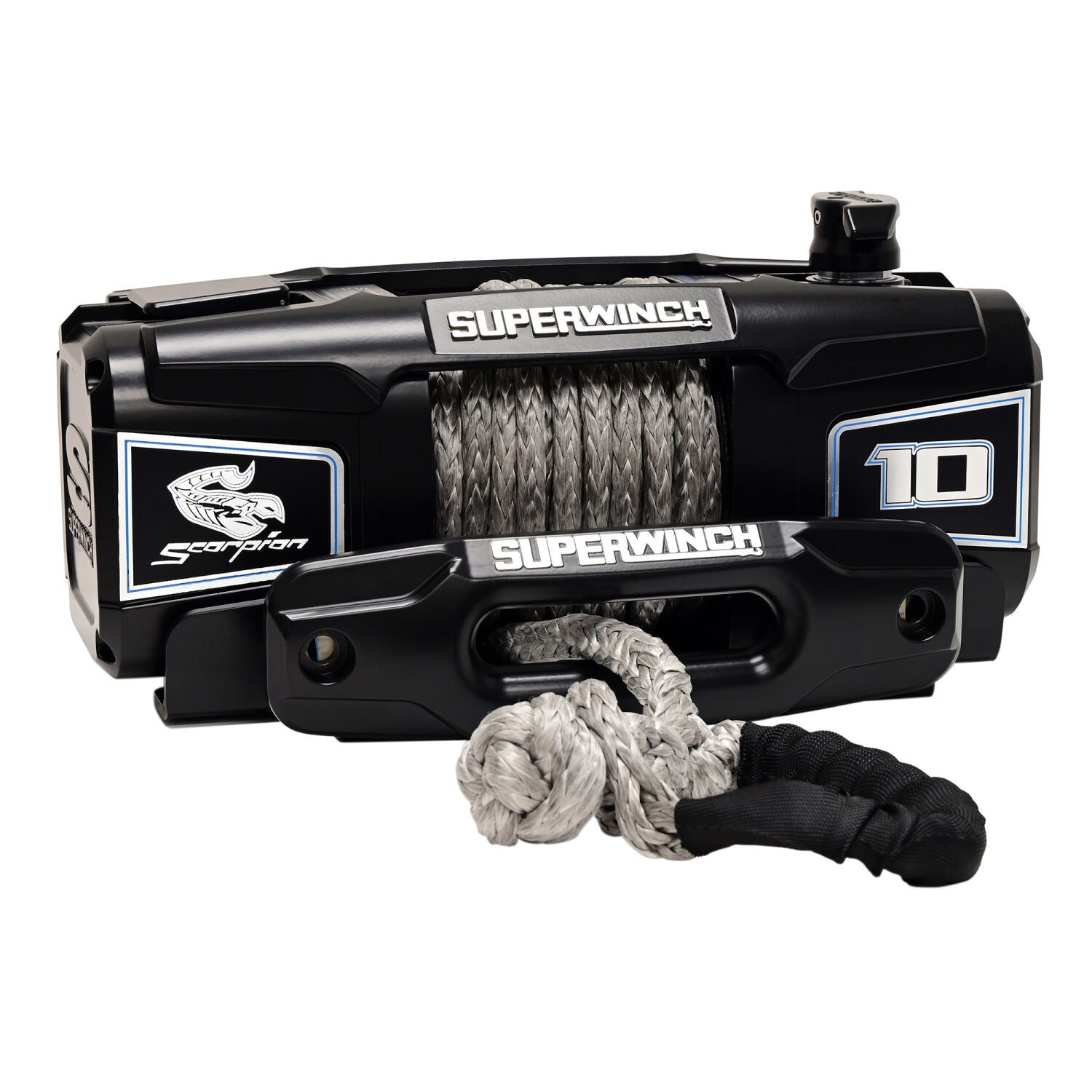

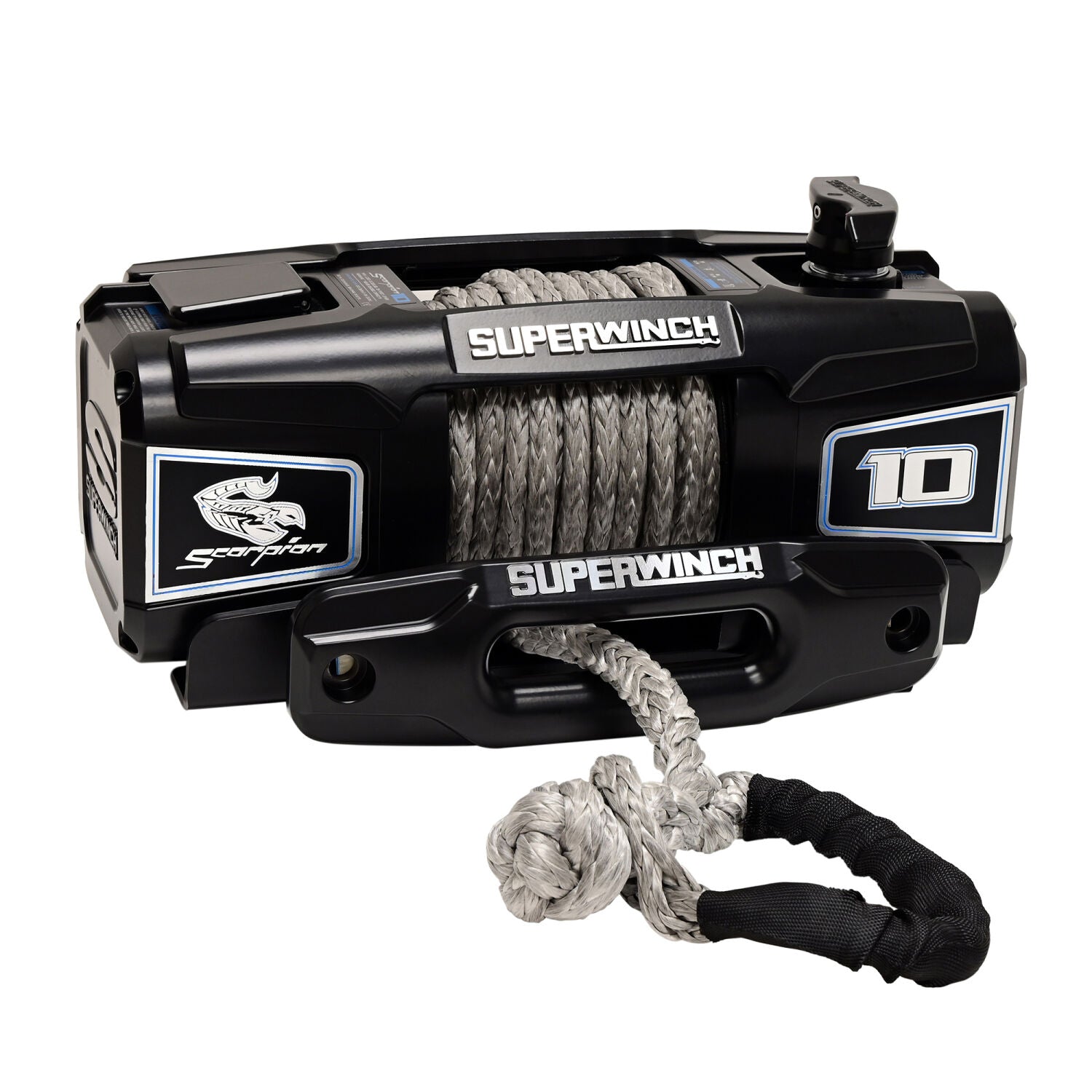

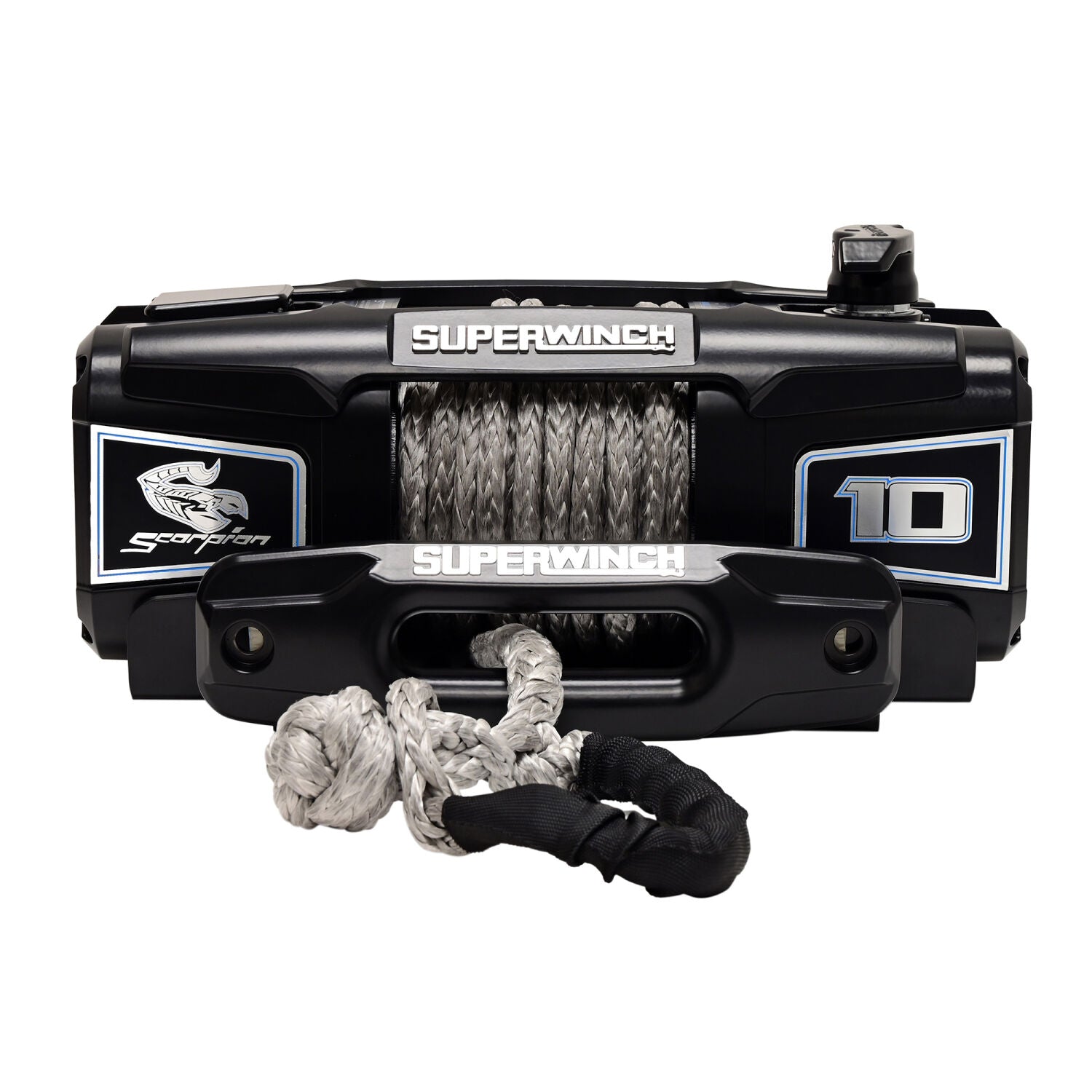

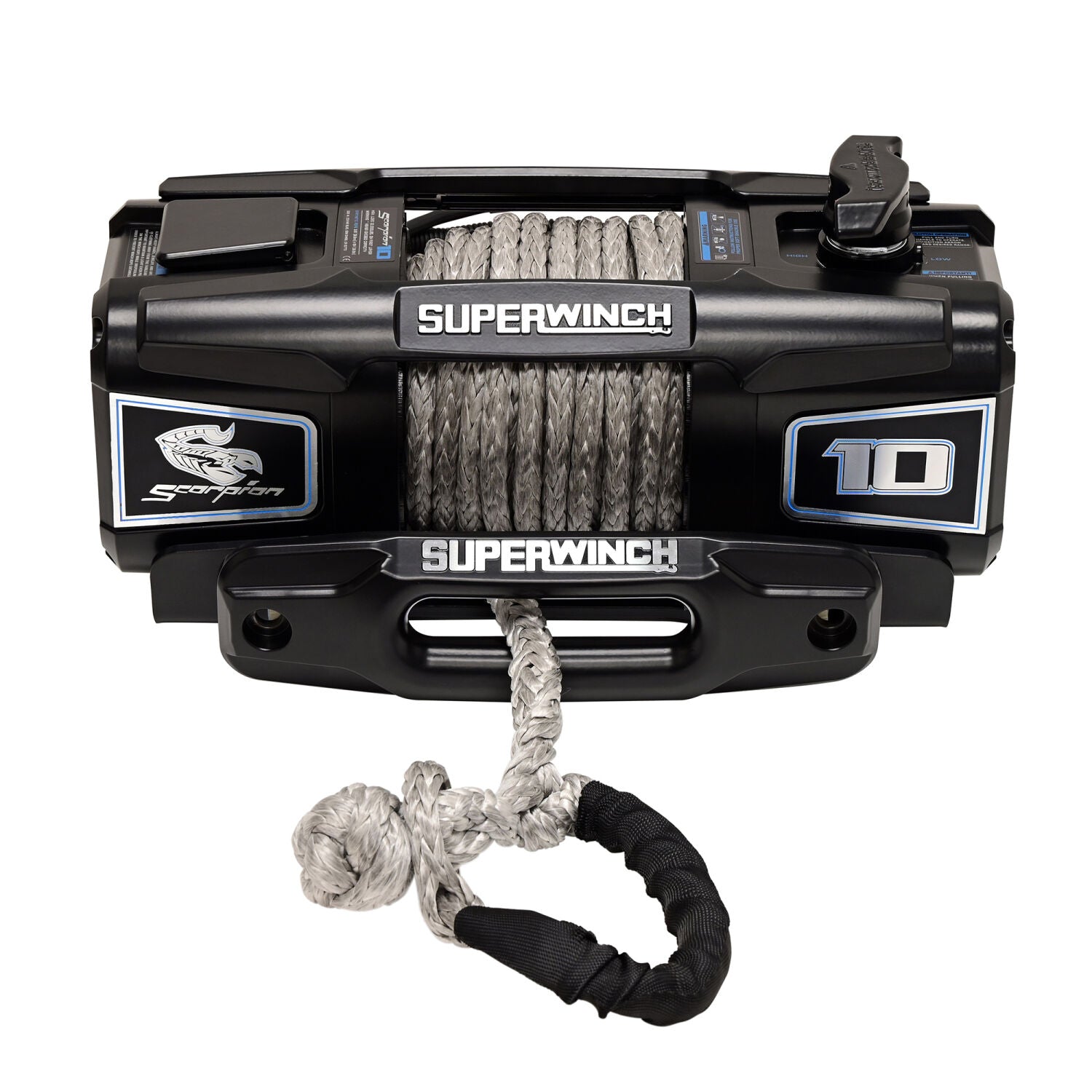

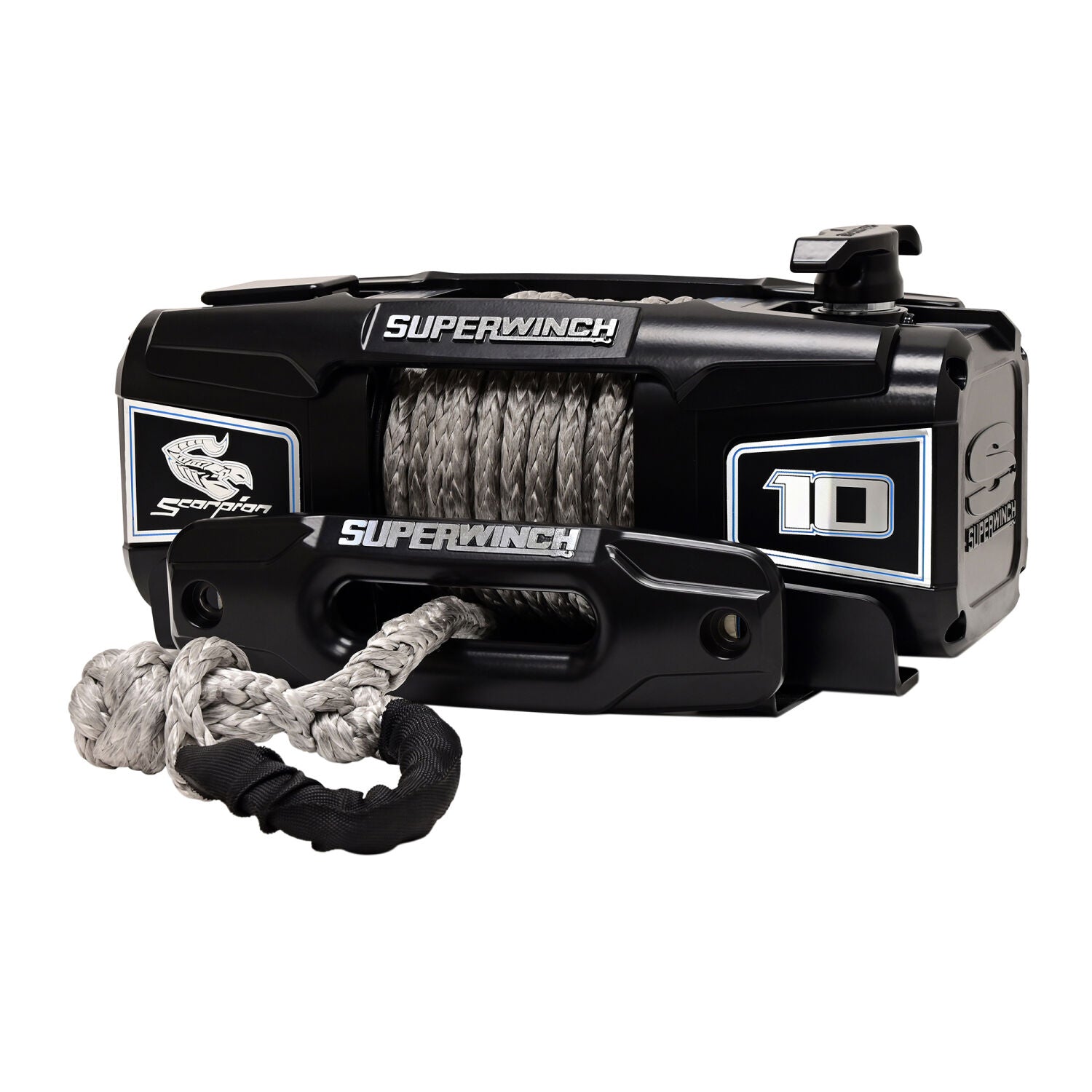

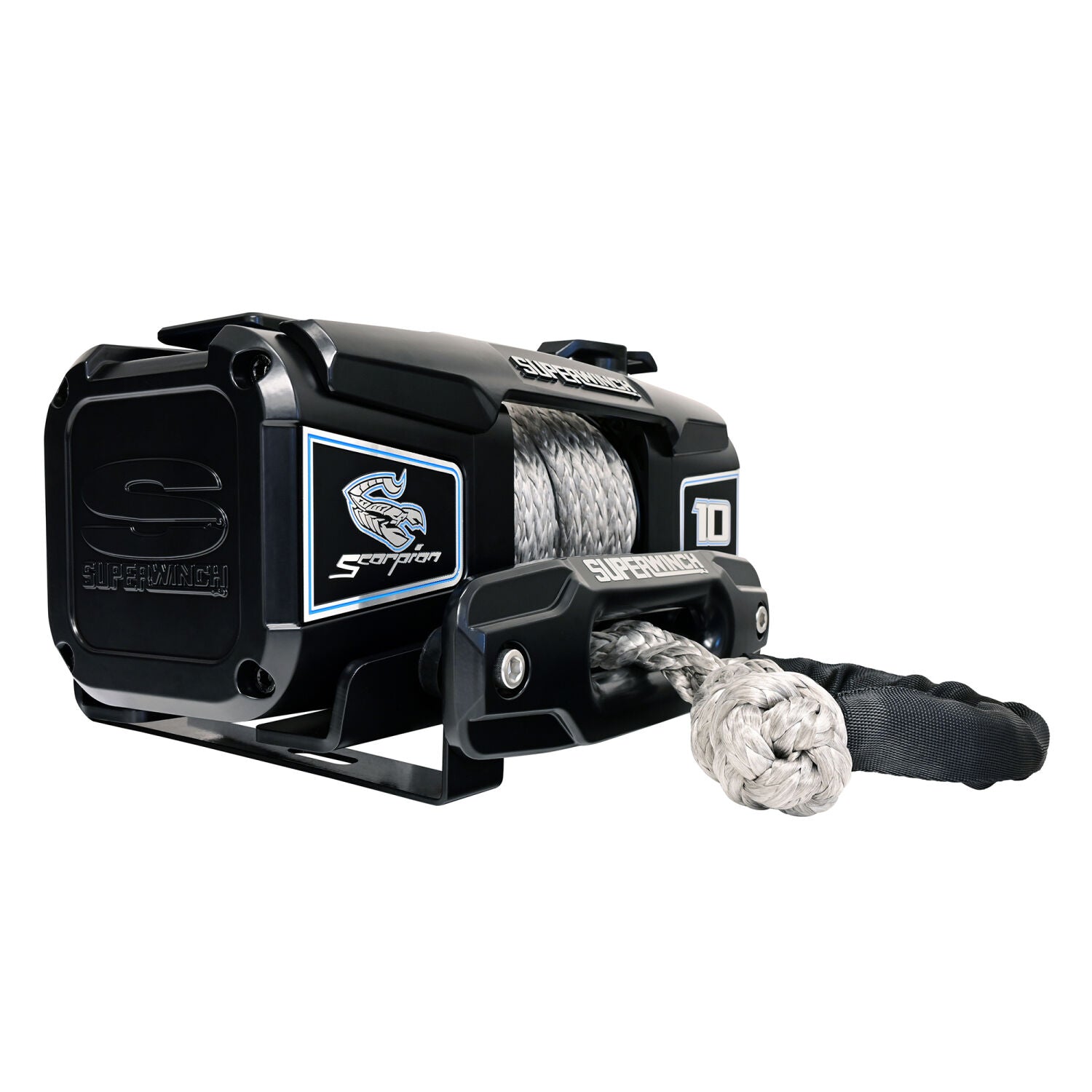

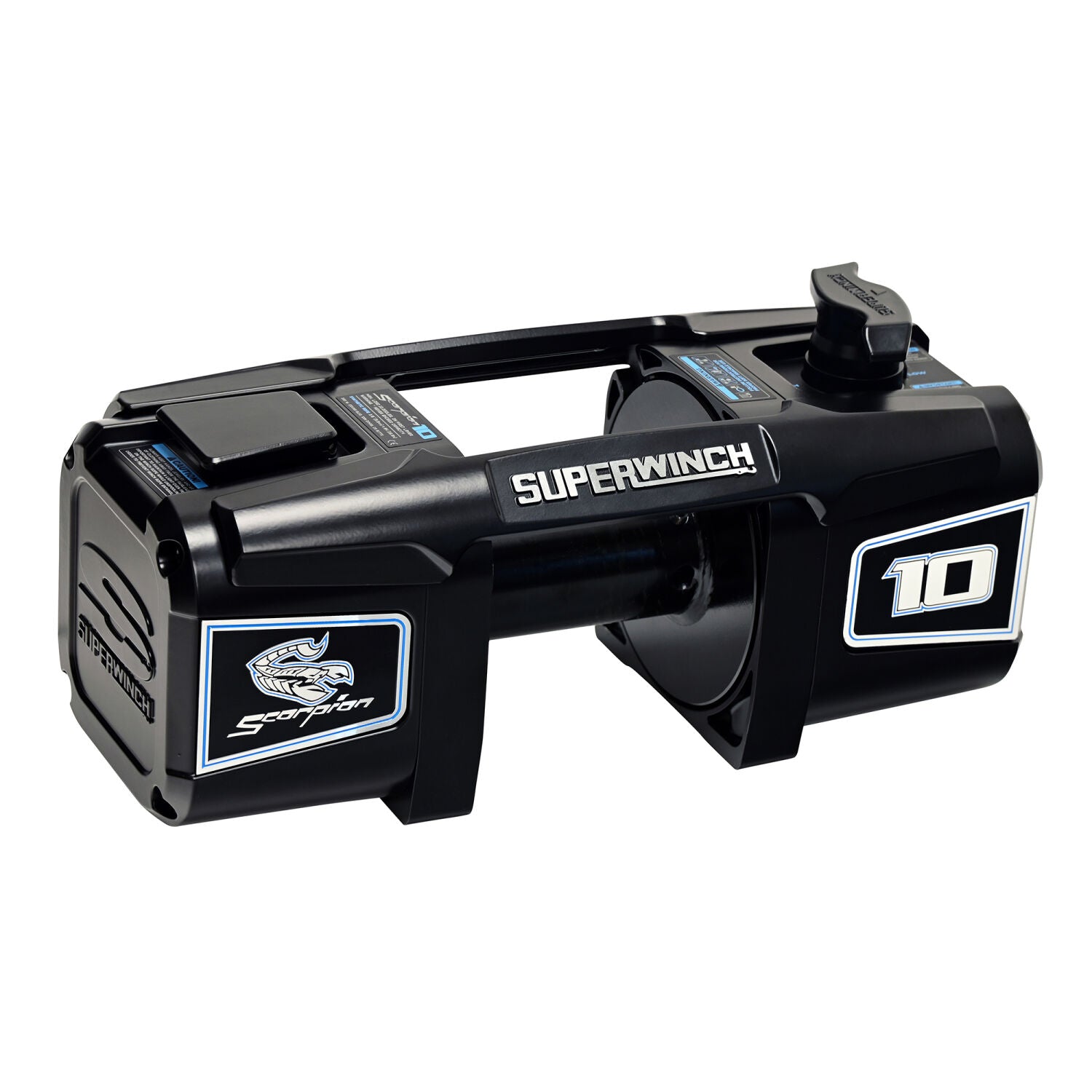

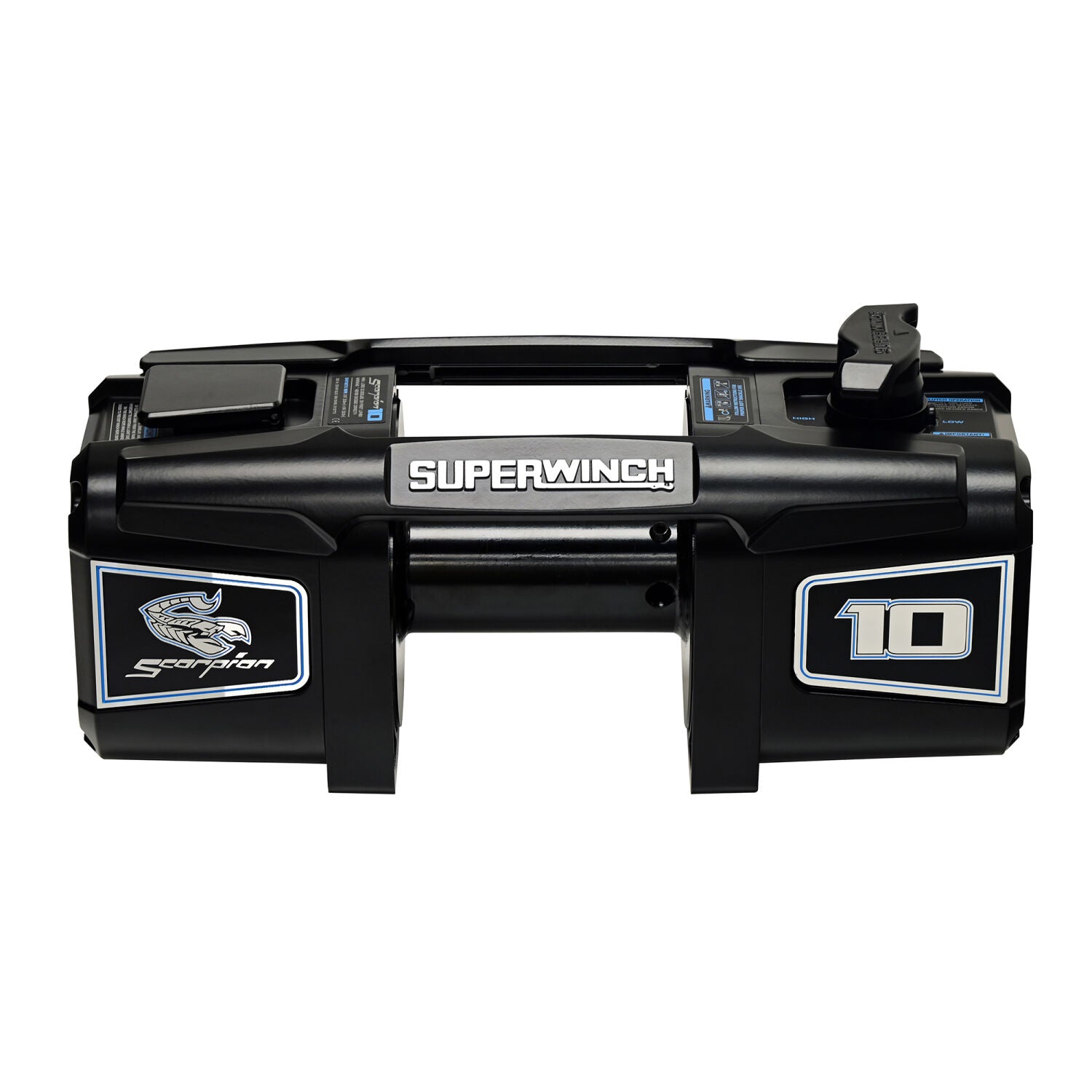

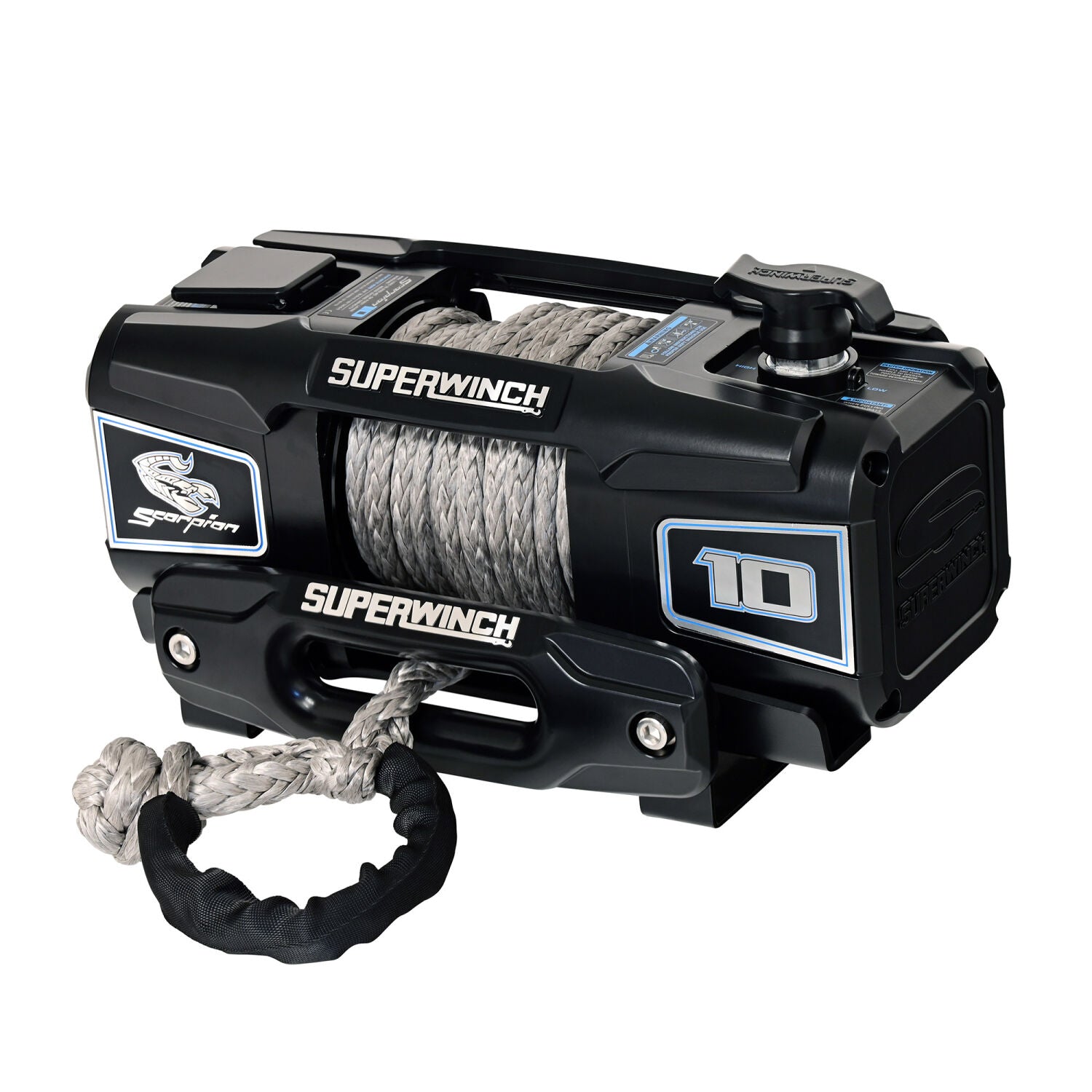

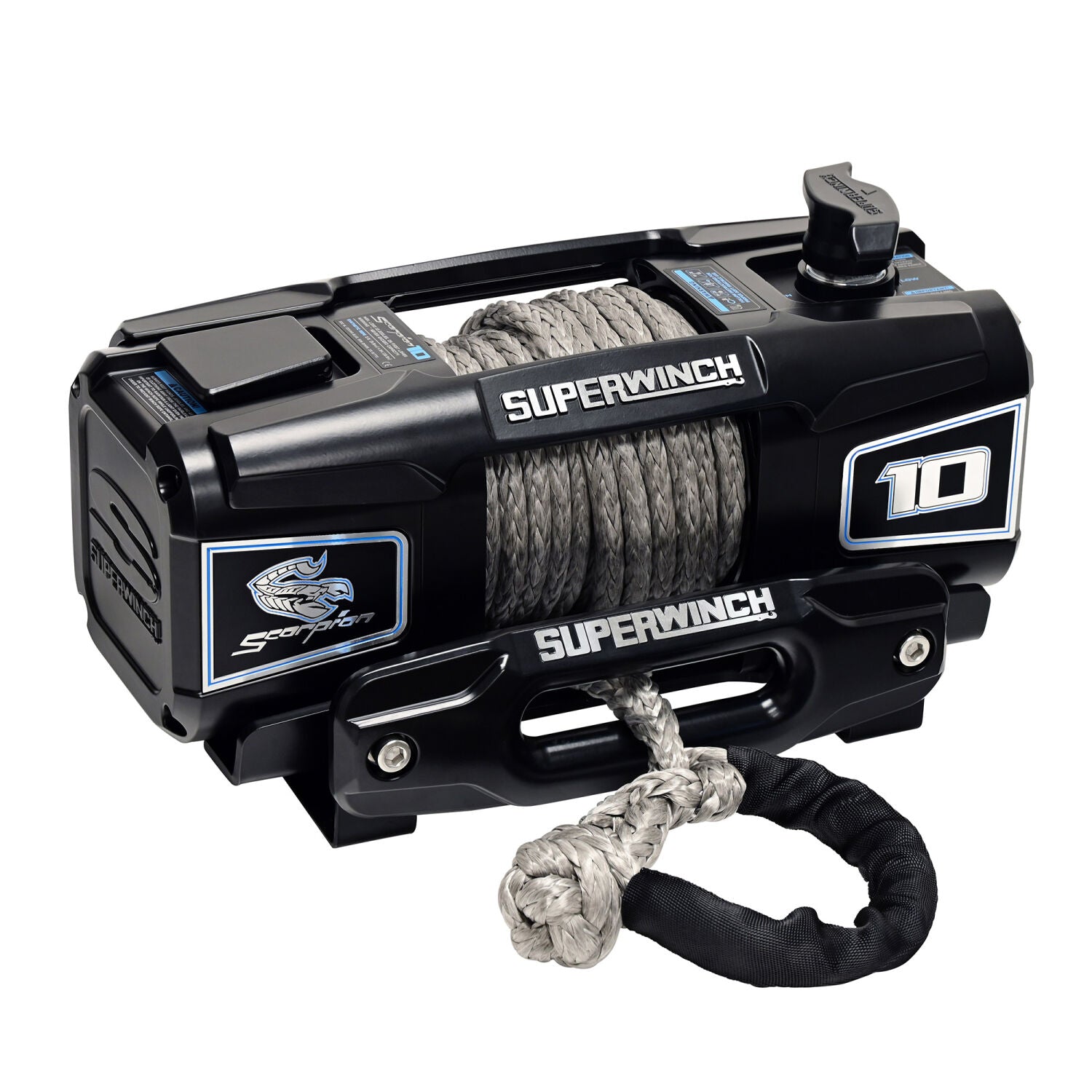

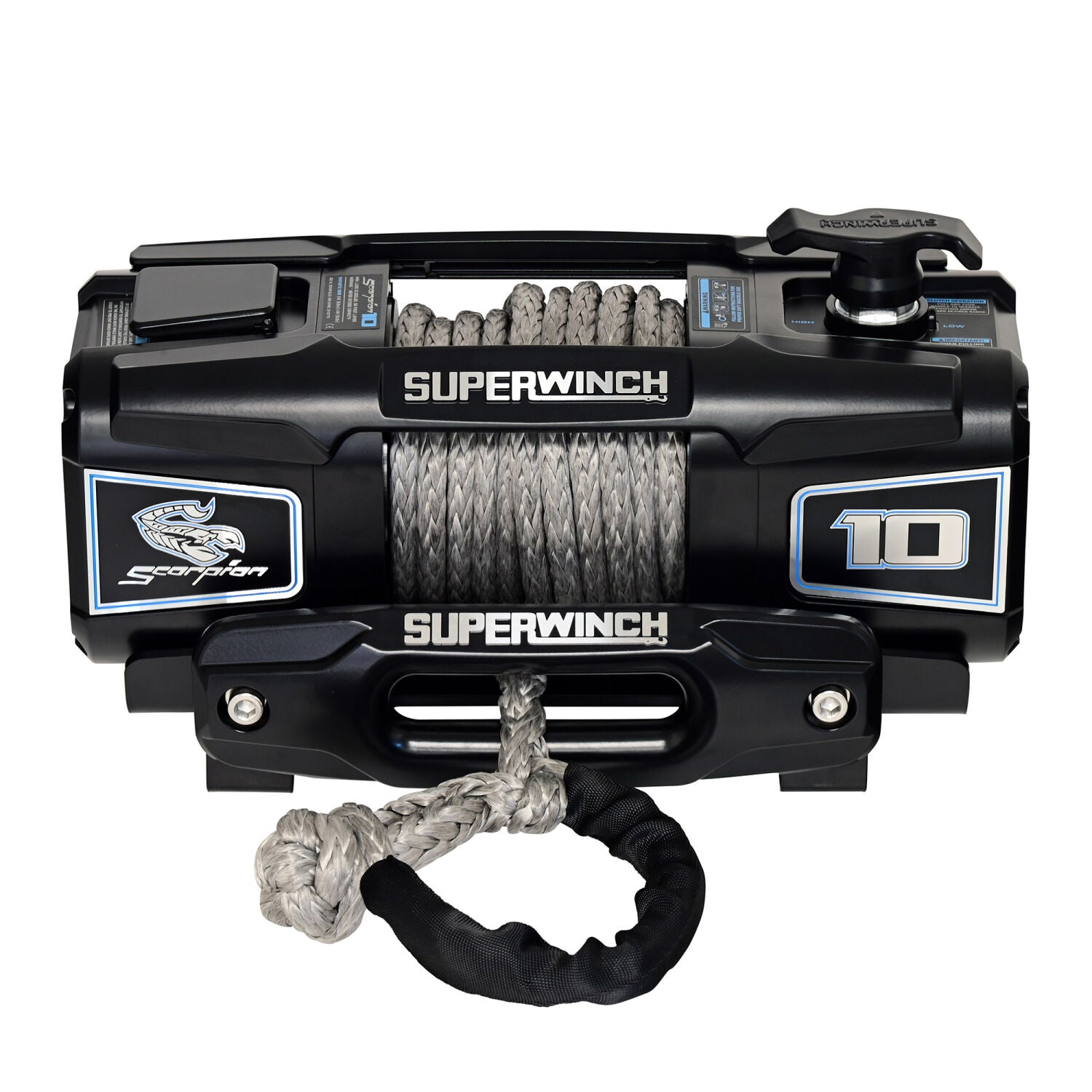

Scorpion 10000lb 12V DC Winch with Synthetic Rope Black - 1155401
SKU:1155401
- Regular price
- $ 874.99
- Sale price
- $ 874.99
- Regular price
- $ 1,093.75
Couldn't load pickup availability
Description
FEATURES
- Compact Design - Fits in tighter spaces than traditional 10,000 lb. winches while reducing stress on the vehicle's suspension.
- Lightweight - 49lbs. compared to most recovery winches that weigh over 75lbs.

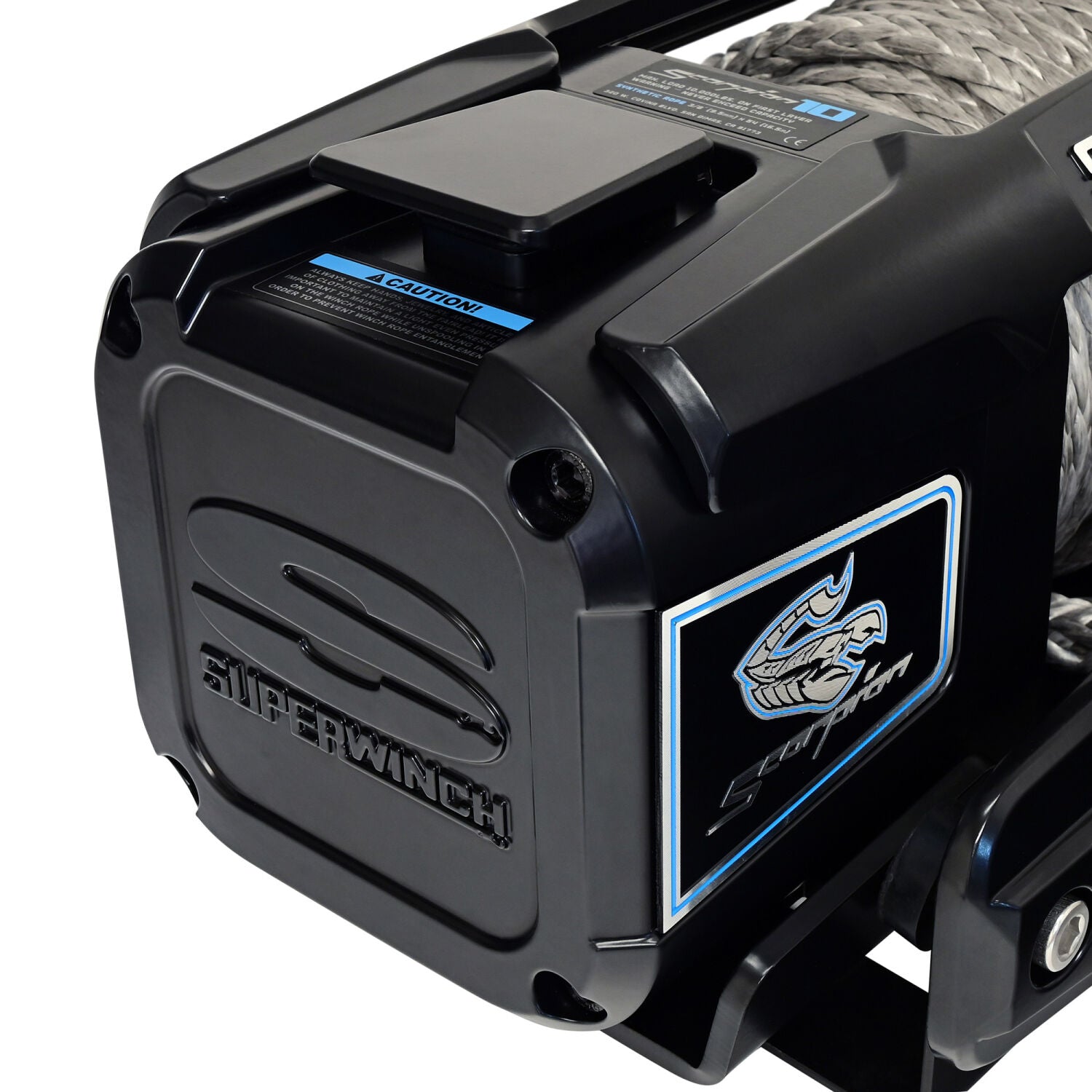

- Internal Control Box - Nothing to relocate with improved radiator airflow and enhanced visibility for camera-equipped vehicles.
- Low Amp Draw - Delivers maximum winching performance using a single 12V battery.
- Permanent Magnet Motor with Dynamic Braking - Provides instant, no-load braking for enhanced safety.
- Full Load-Holding Automatic Brake - Securely holds loads of up to 10,000 lbs.
- 4-Stage Planetary Gear System - Dual-range gearing: low gear (437:1) for maximum pulling power up to 10,000 lbs., high gear (156:1) for fast line speeds up to 3,000 lbs.
- Clock-able Gearbox - Can be positioned in four orientations for flexible installation.

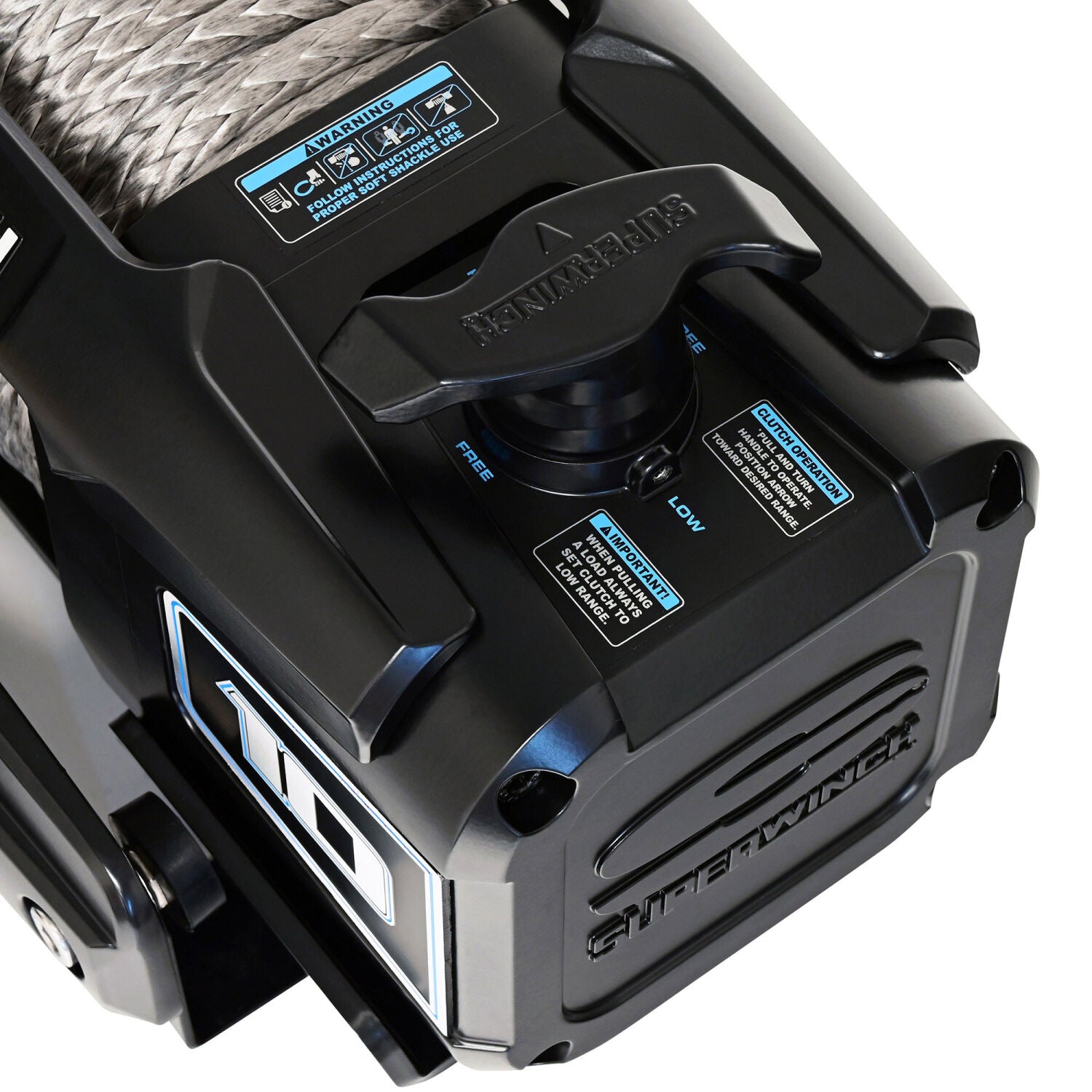

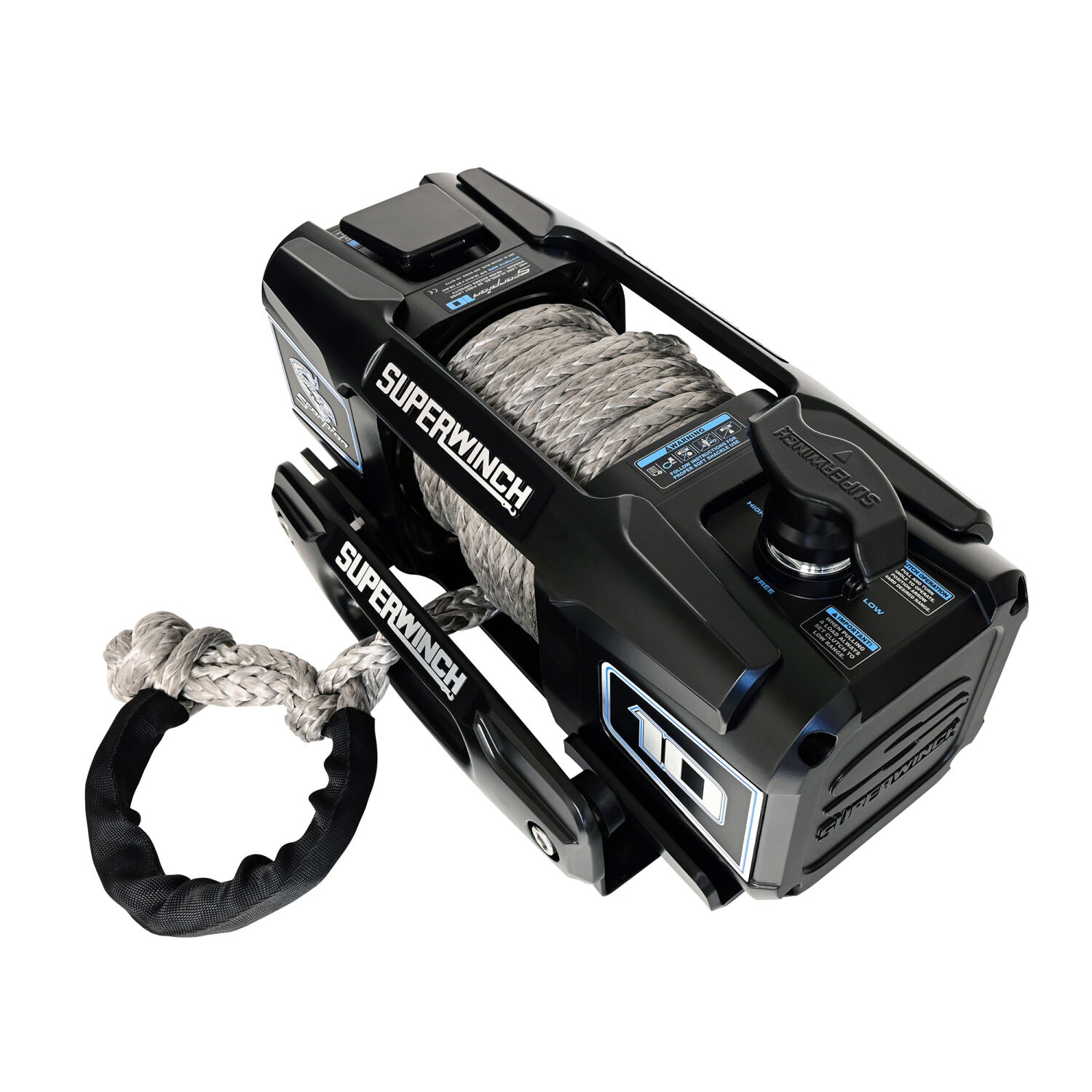

- Ergonomic Pull-and-Turn Free-Spool Clutch - Enables quick, hassle-free range changes and smooth free-spool operation.
- Patented Drum Light - Ensures superior visibility in low-light conditions.

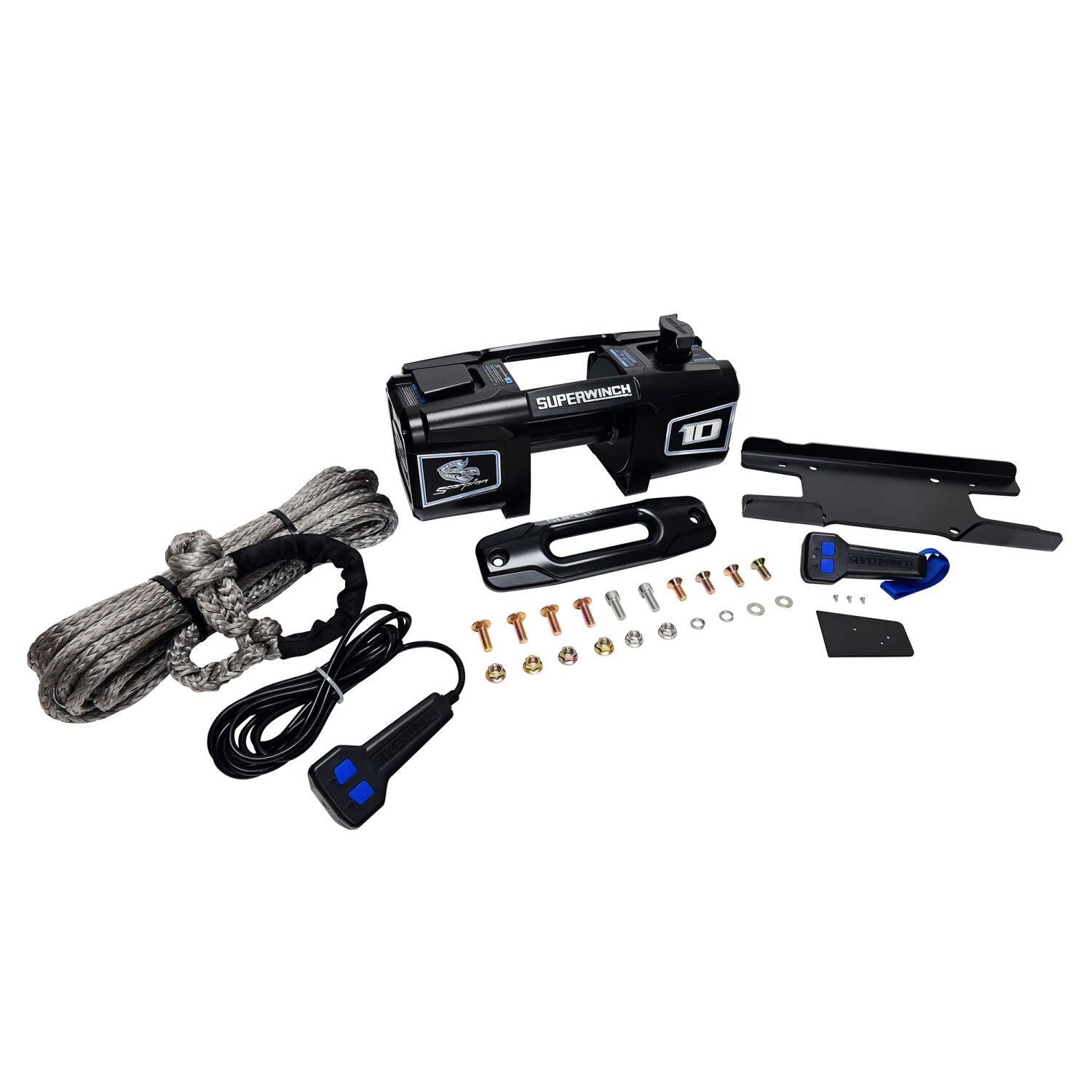

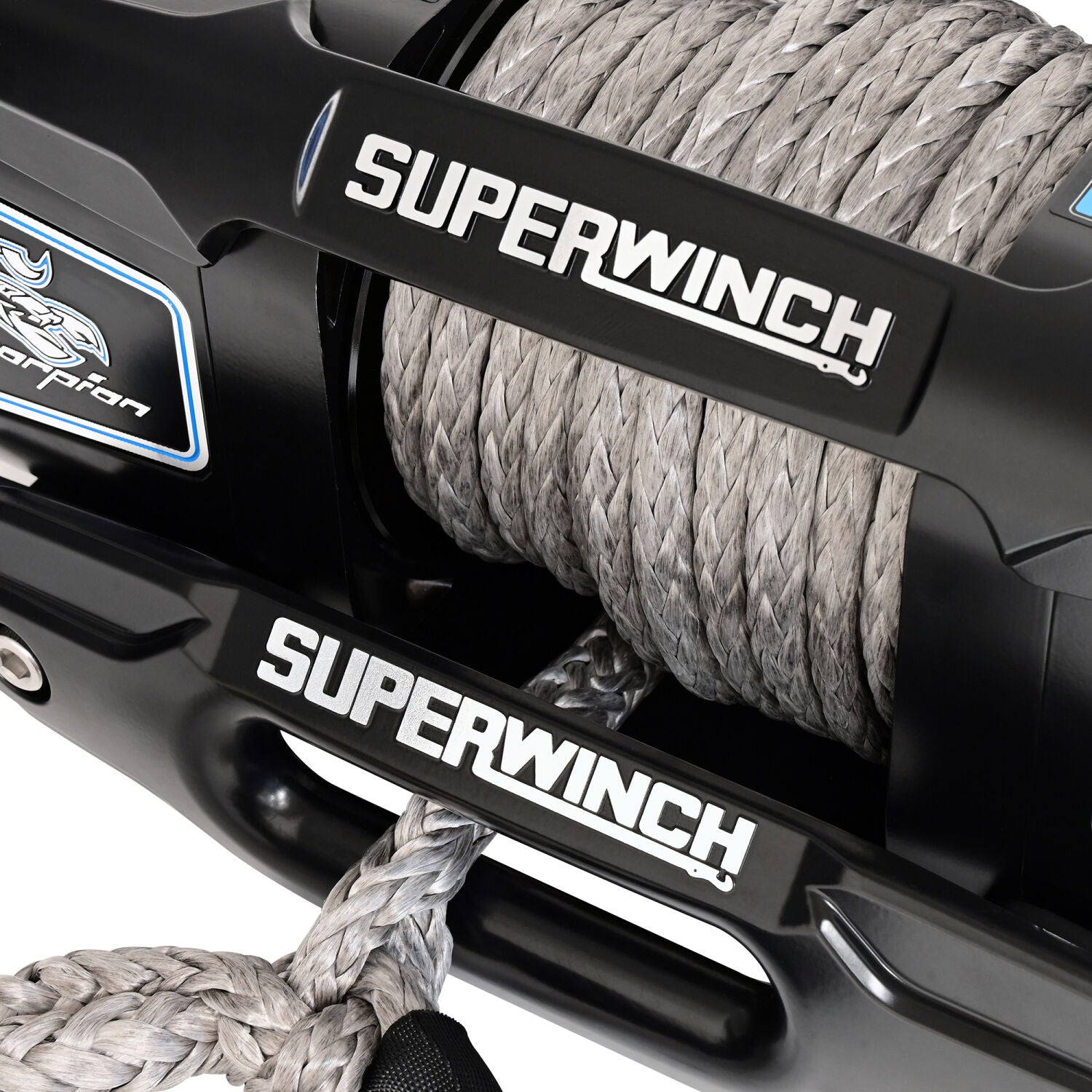

- 3/8 in. x 54 ft. Synthetic Rope with Integrated Soft Shackle - Eliminates all metal in the winch line for maximum safety.
- Overload Interrupter (OLI) - Automatically shuts off the winch at maximum load to prevent potential vehicle damage.

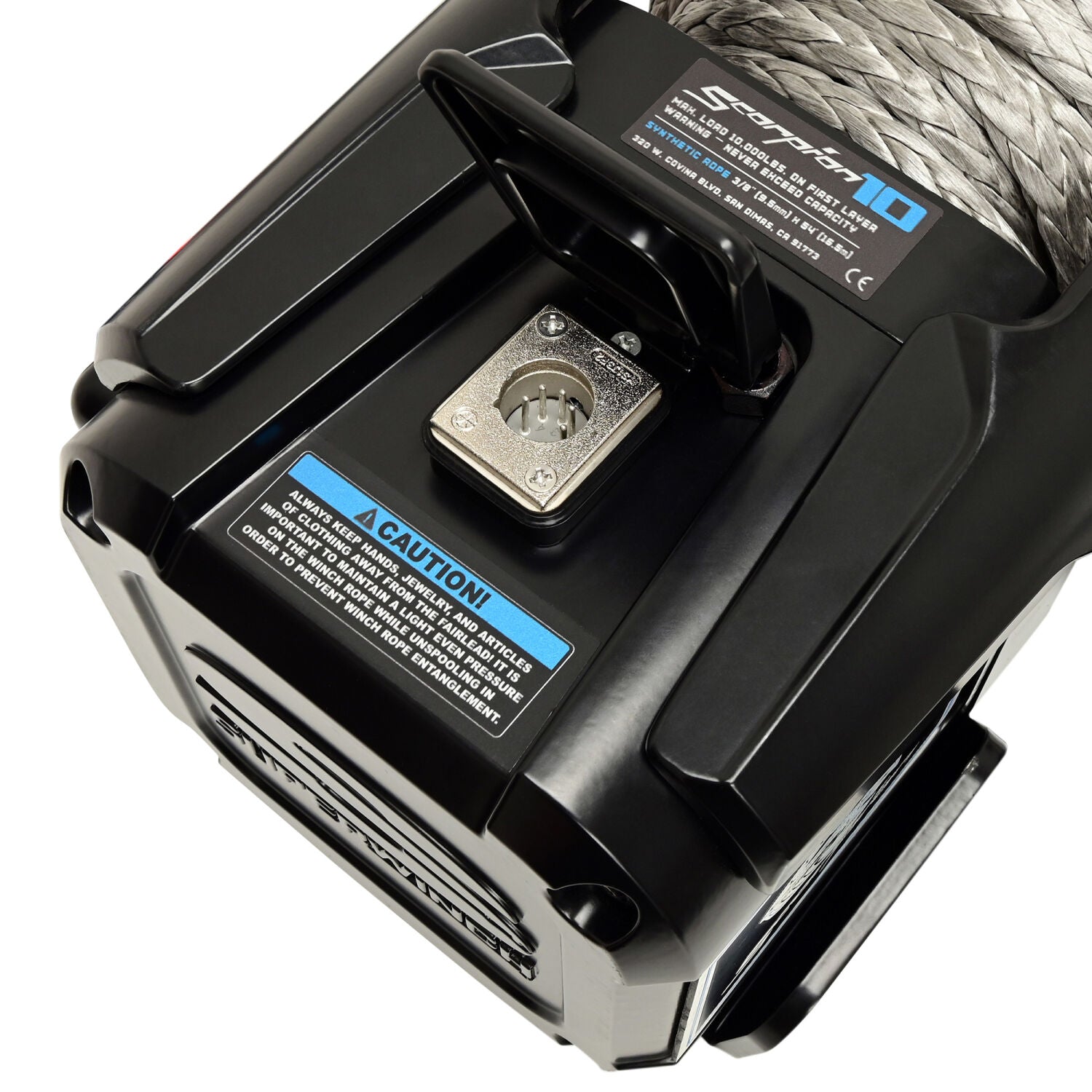

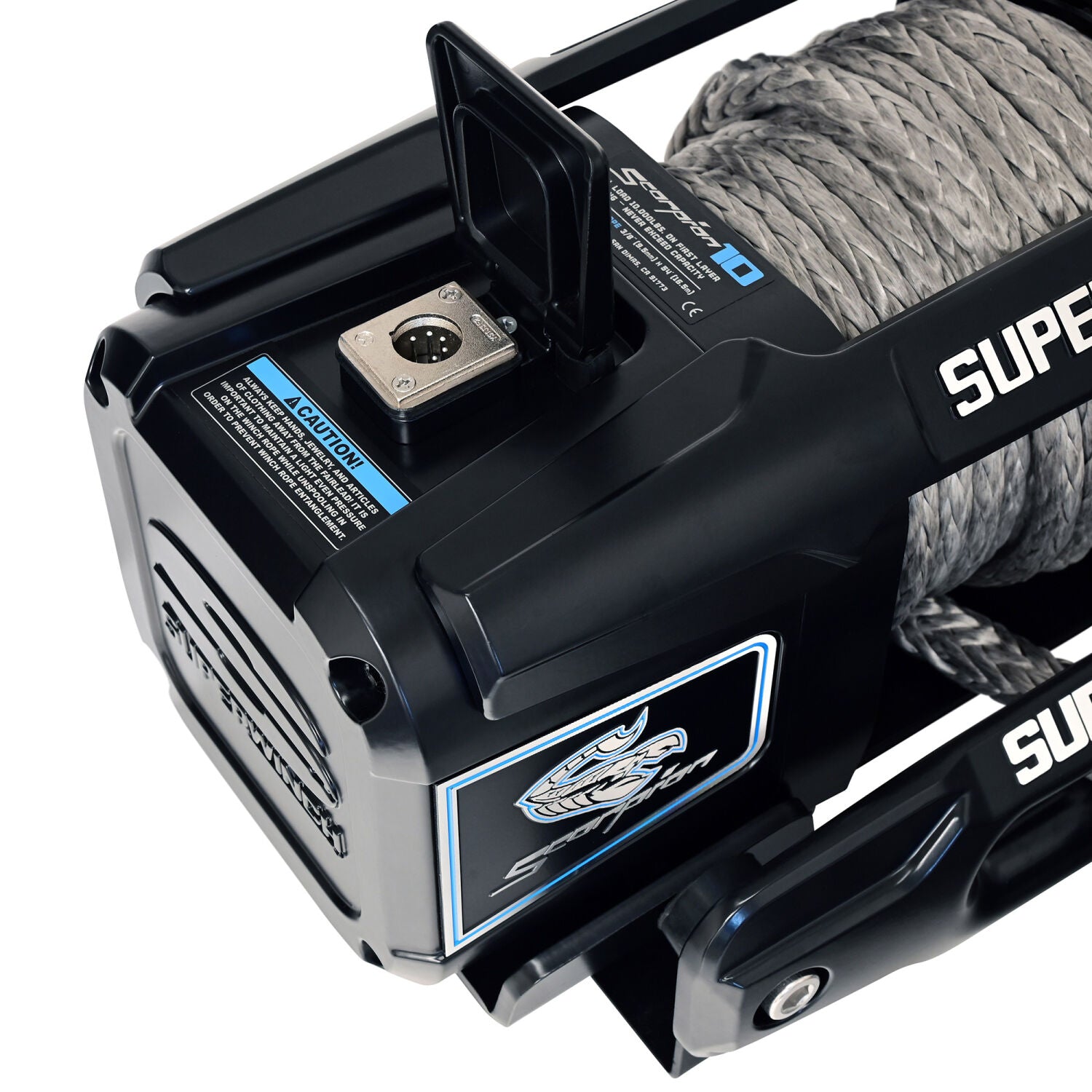

- Multi-Function Wired Remote - Features an integrated, rechargeable flashlight for added convenience.
- Wireless Remote - Ergonomic design with MOLLE loop clip for easy access and storage.
SPECIFICATIONS
| MPN | 1155401 |
| Winch Type | Electric |
| Rated Line Pull | 7,500 - 12,500 lbs |
| Voltage | 12V DC |
| Motor | 1.9 HP, 12V DC |
| Gear System | 4-Stage Planetary |
| Gear Ratio | High 156:1/Low 437:1 |
| Clutch | Pull and turn clutch handle |
| Brake System | 100% Full-load holding automatic mechanical brake |
| Rope Material | Synthetic |
| Fairlead | Hawse |
| Remote Type | Wire and Wireless |
| IP Rating | IP68 Waterproof and Dustproof |
| Mounting Bolt Pattern | 10.00in x 4.50in and 6.38in x 4.50in |
| Color | Black |
| Control Box | Relocatable Die-Cast Aluminum |
| Task Lighting | Patented drum light |
| Drum | Durable fully welded steel drum |
| Winch Hook | Integrated Soft Shackle |
| Weight | 0.0000 |
| Width | 11.00 |
| Height | 13.00 |
INSTALLATION
WARRANTY
Limited Lifetime Mechanical/7 Year Limited Electrical

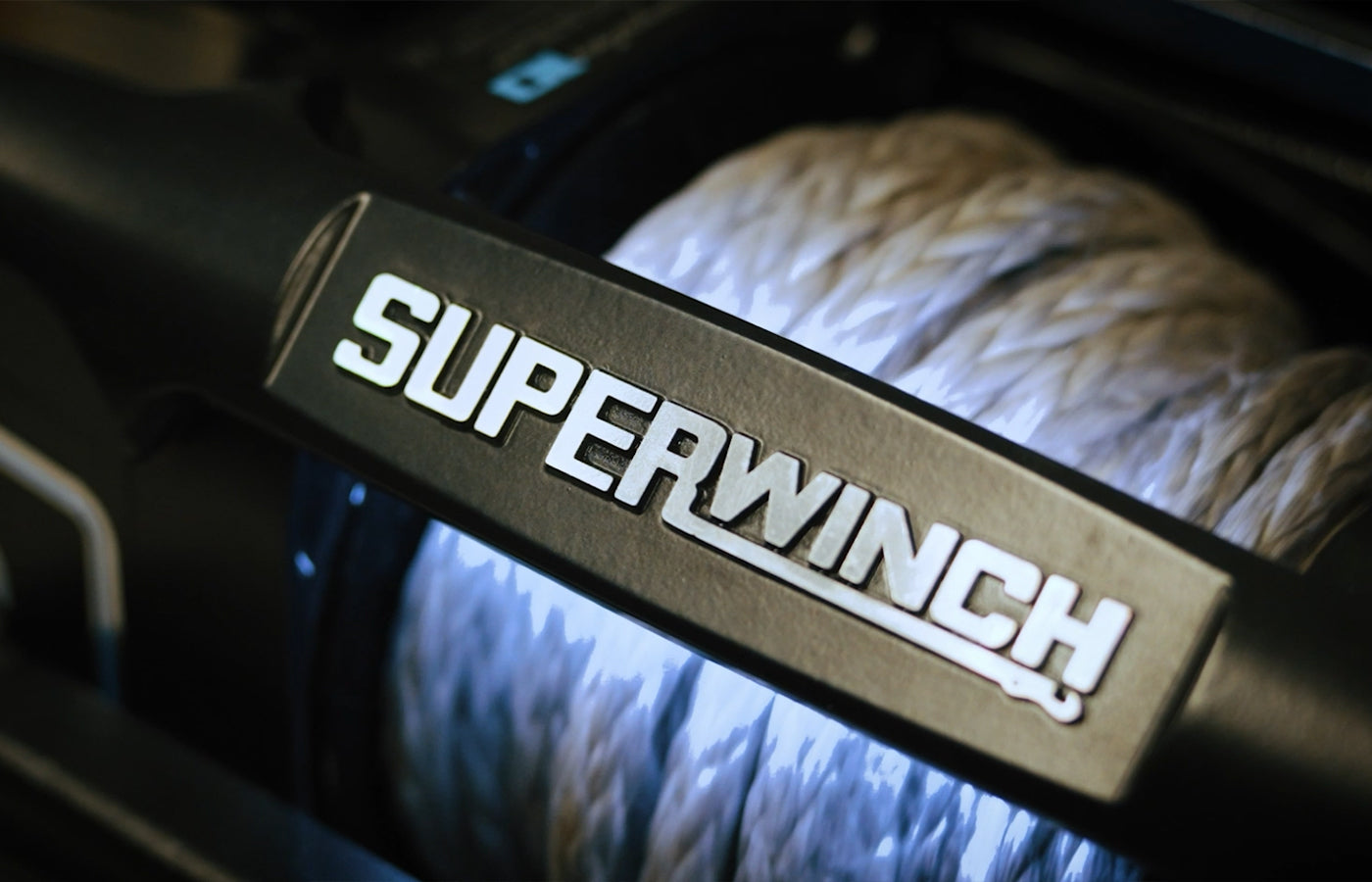

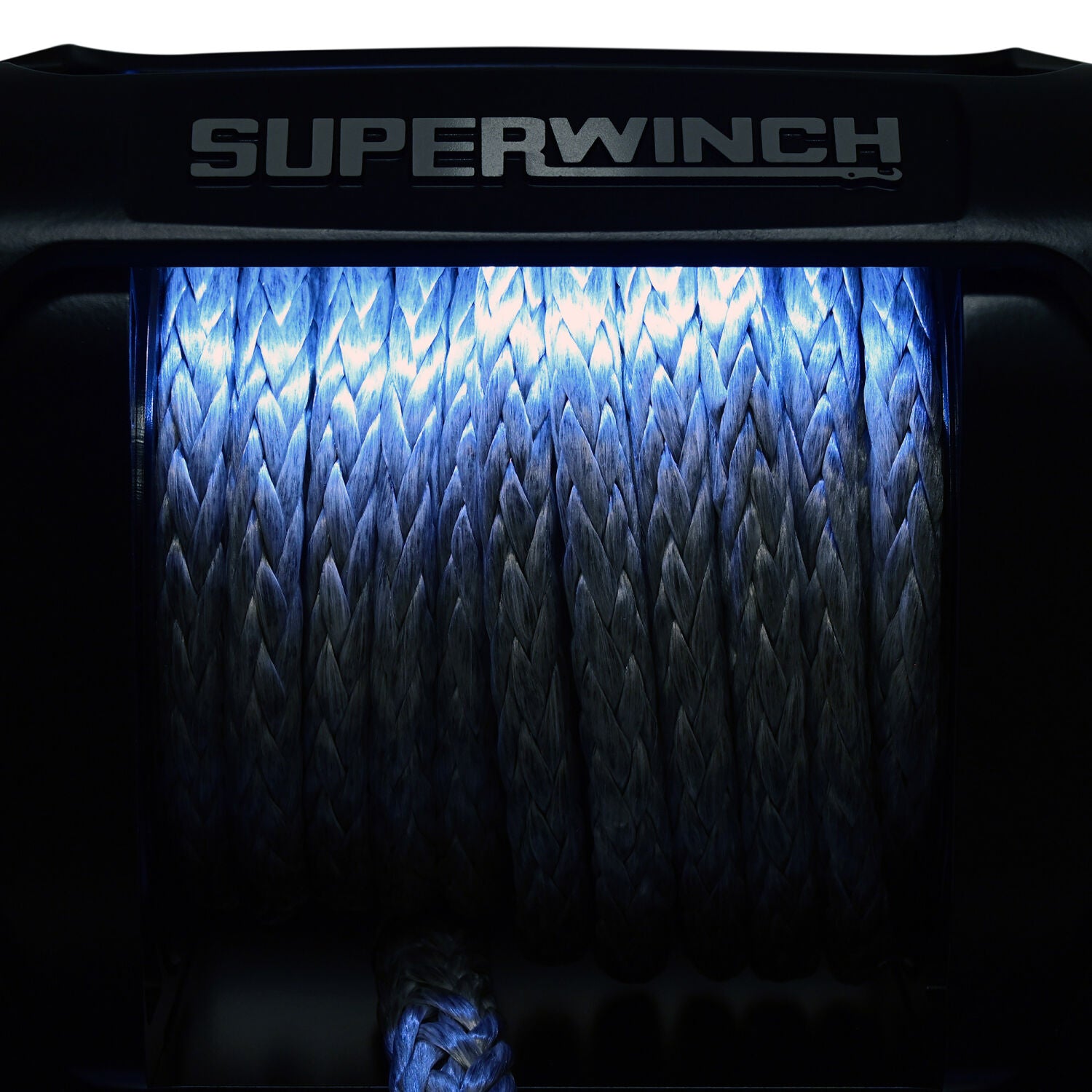

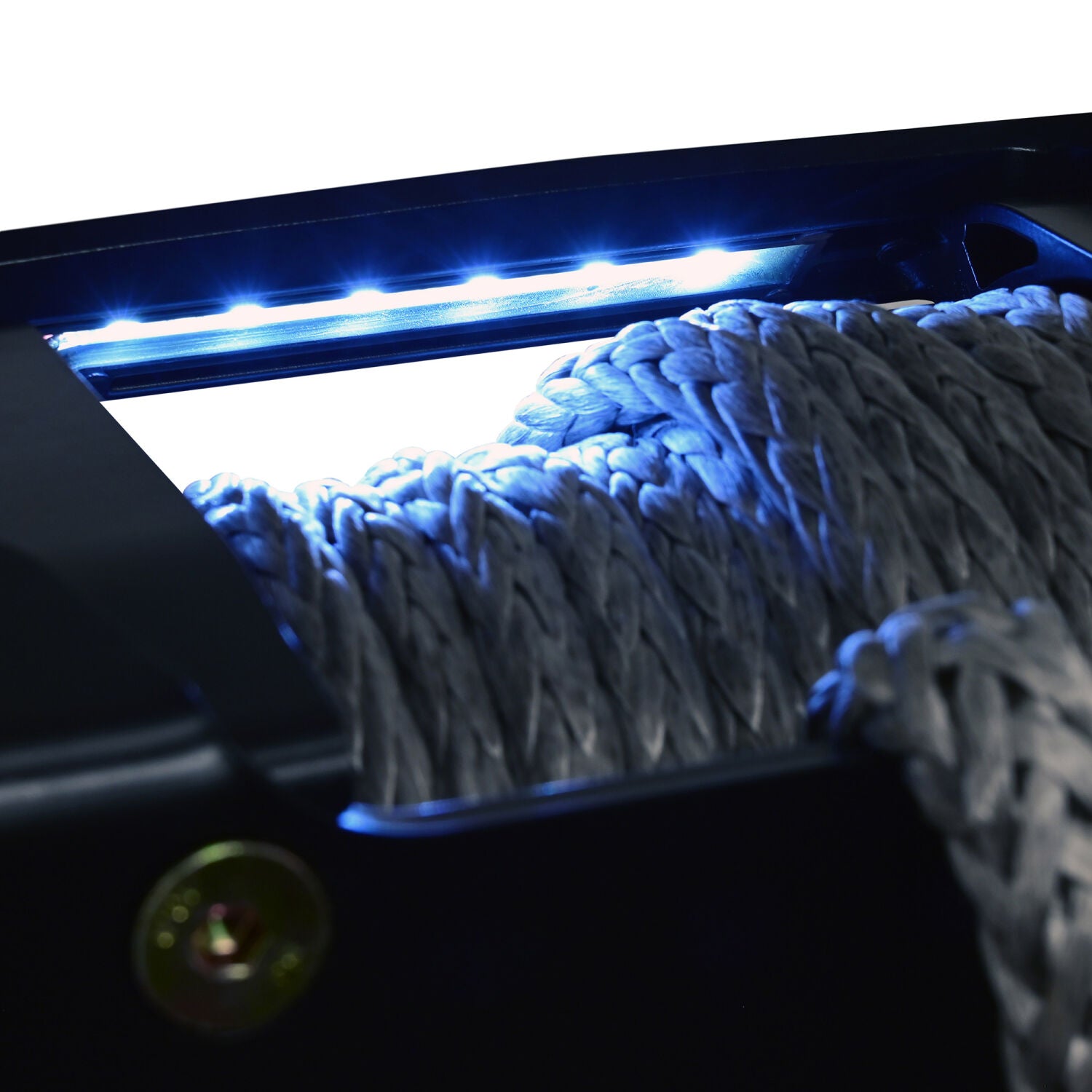

PATENTED DRUM LIGHT
The Future is here.
The Scorpion 10SR Winch isn’t just powerful, it’s engineered for confidence in every recovery. At the heart of that capability is the patented drum light, a Superwinch exclusive that brings crucial visibility right to the point of action.
Mounted directly at the drum and fairlead area, this integrated lighting system illuminates the rope, spool, and anchoring point so you can clearly see what you’re doing in low-light conditions — whether you’re working at dusk, under a vehicle, in dust, or on early-morning trail starts.
Built for Versatility and Control
Complete Control in Every Situation.
The wireless remote allows you to move freely around your vehicle while maintaining full control of the winch. It lets you position yourself at the safest and most strategic vantage point during a pull, improving visibility and overall safety. Designed with ergonomics in mind, it’s easy to handle and simple to keep accessible when you’re on the trail.
For situations where a direct connection is preferred, the wired remote delivers consistent, interference-free operation. It’s ideal for precision work, extended recoveries, or when you want dependable control without relying on battery power or signal strength.
