Superwinch

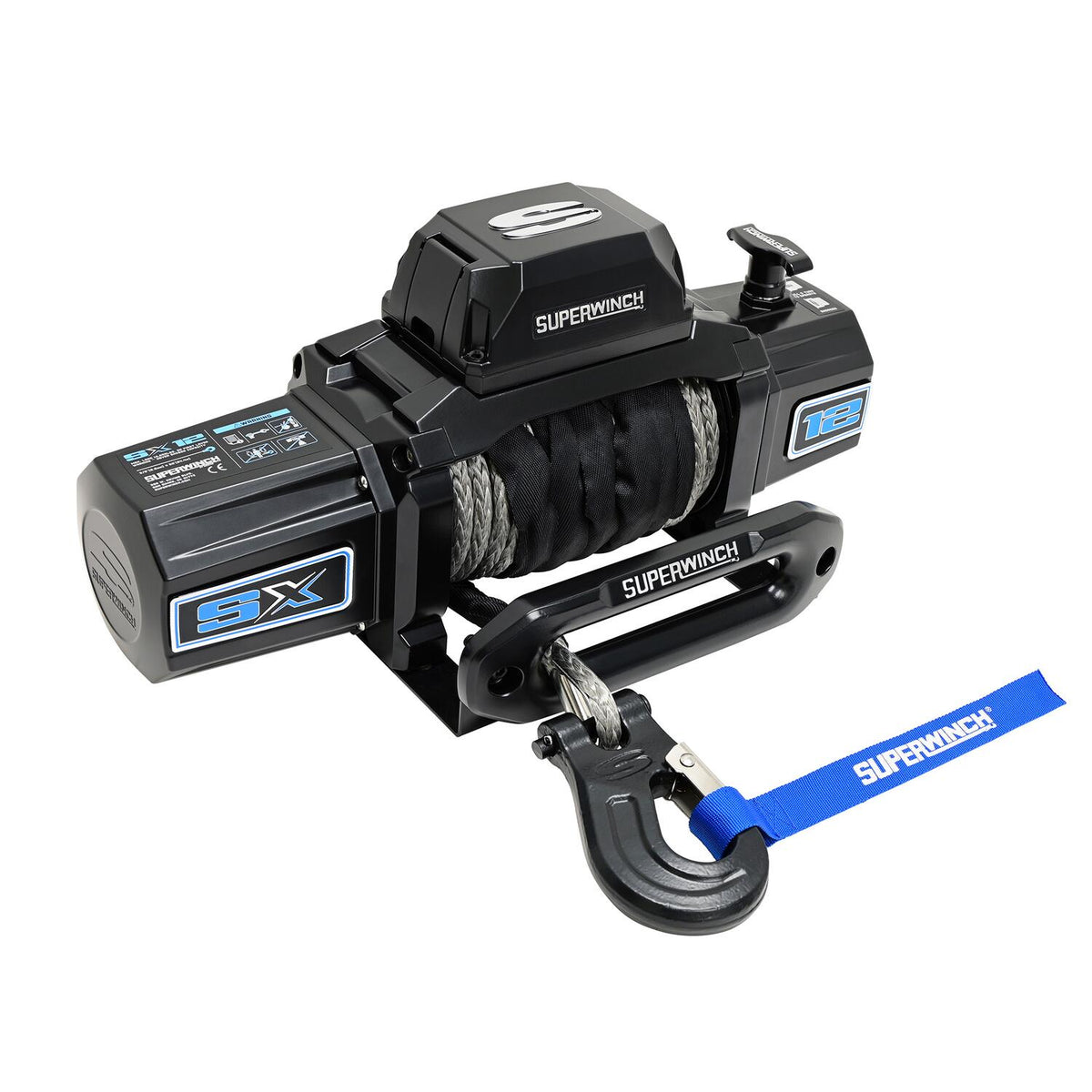

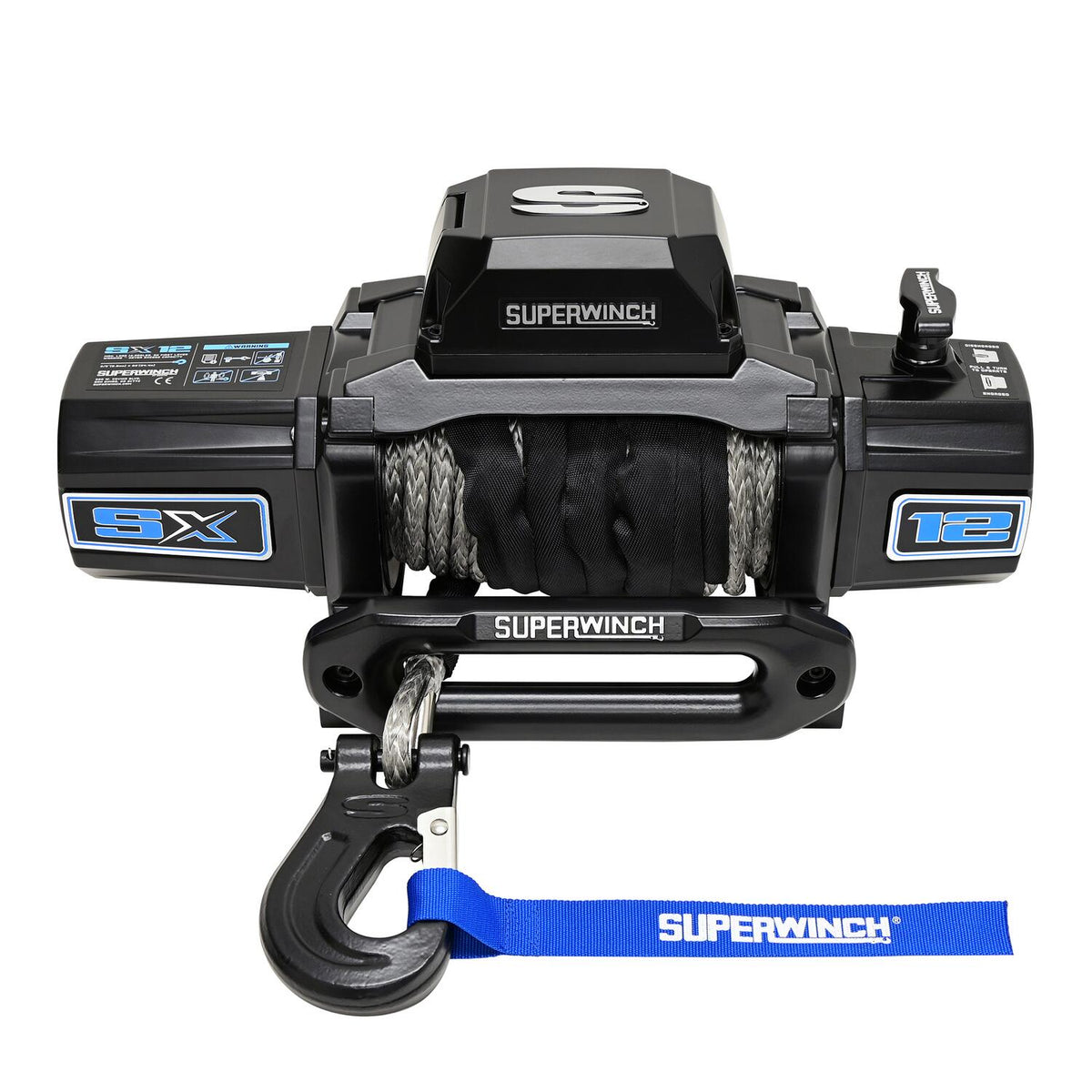

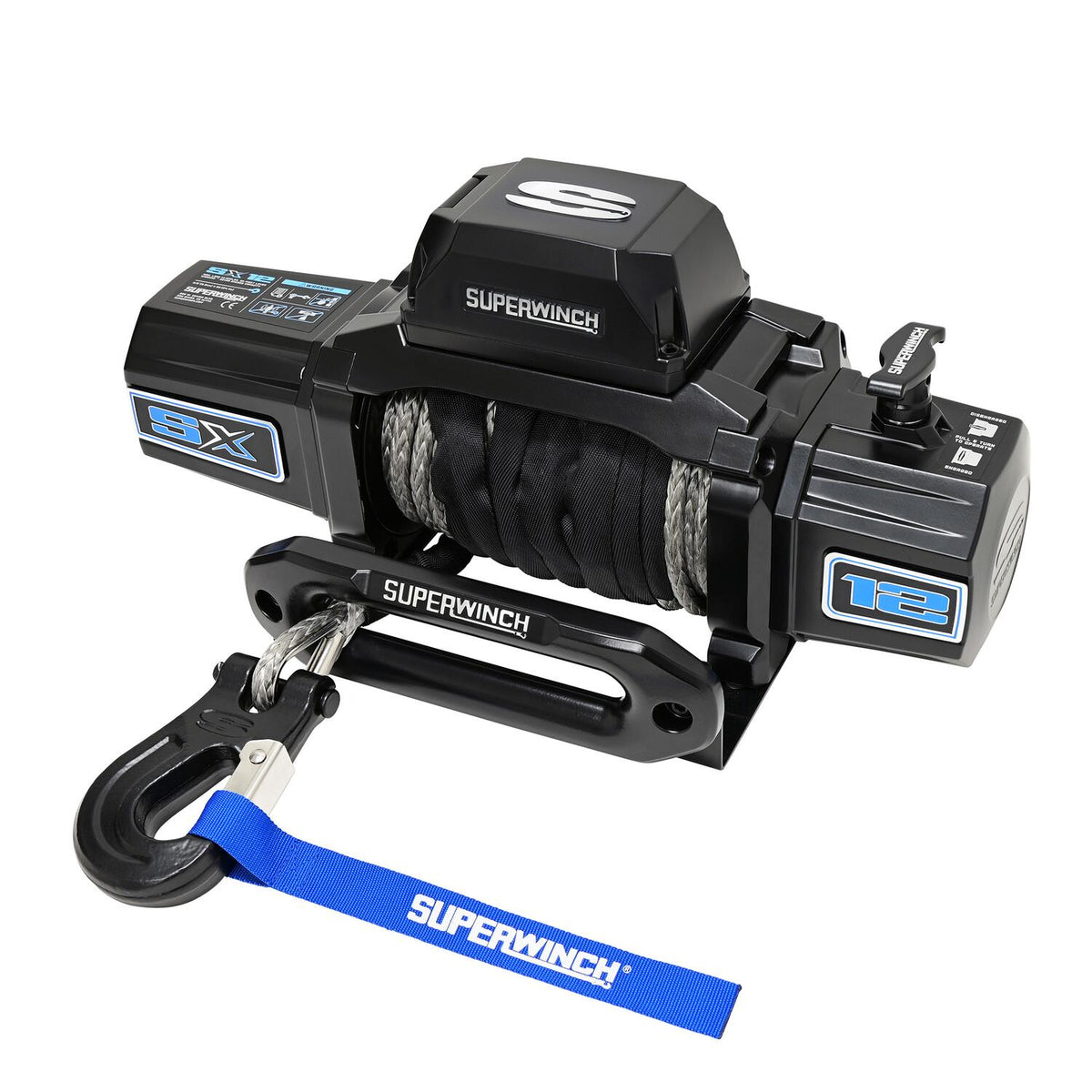

SX12SR 12000lb 12V DC Winch with Synthetic Rope Black - 1712204

SKU:1712204

Regular price
$ 997.99
Sale price
$ 997.99
Regular price
The SX12SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance t...
In Stock

Description

The SX12SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

FEATURES

12,000 lbs. capacity

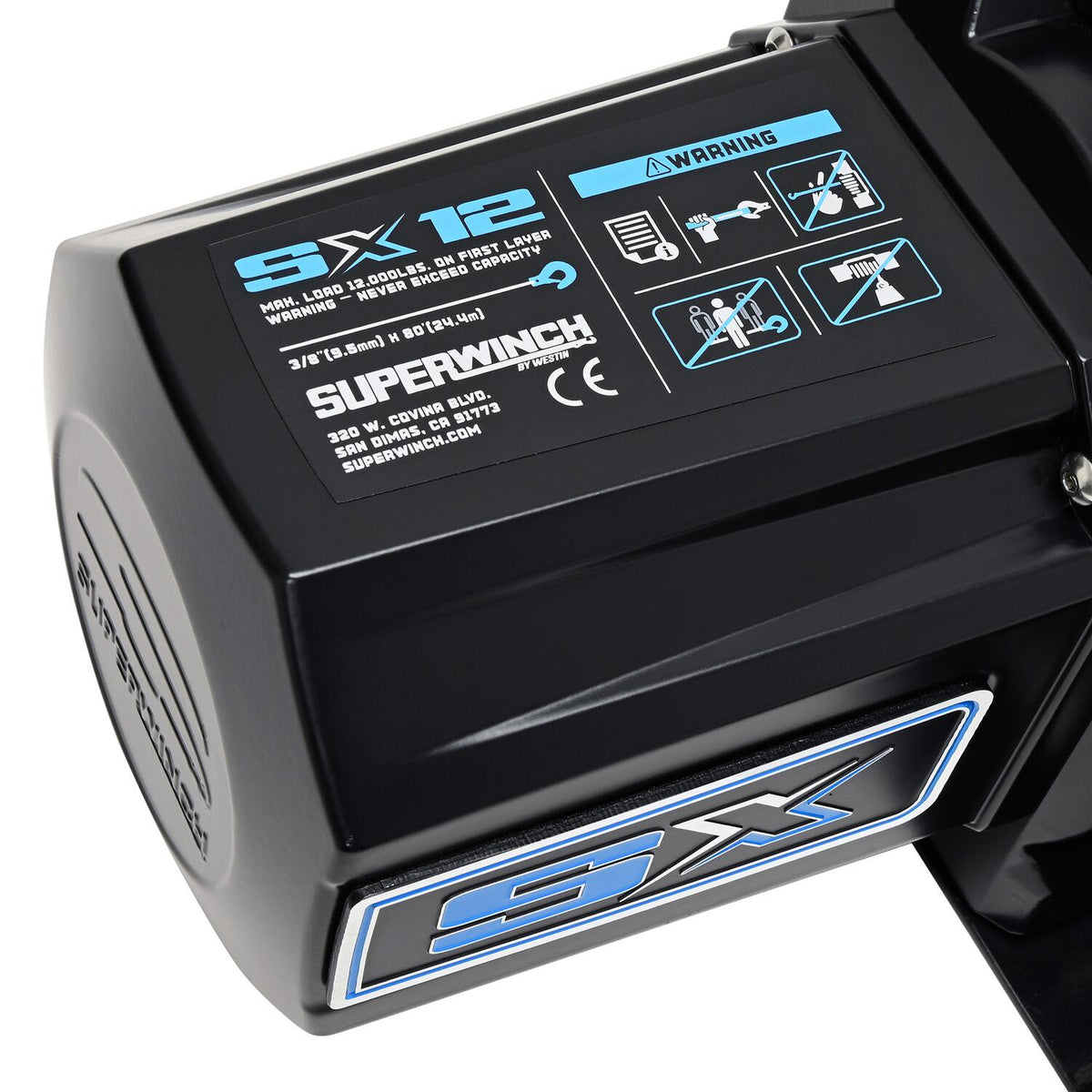

6.0 HP sealed motor

80' - 3/8" UV coated synthetic rope

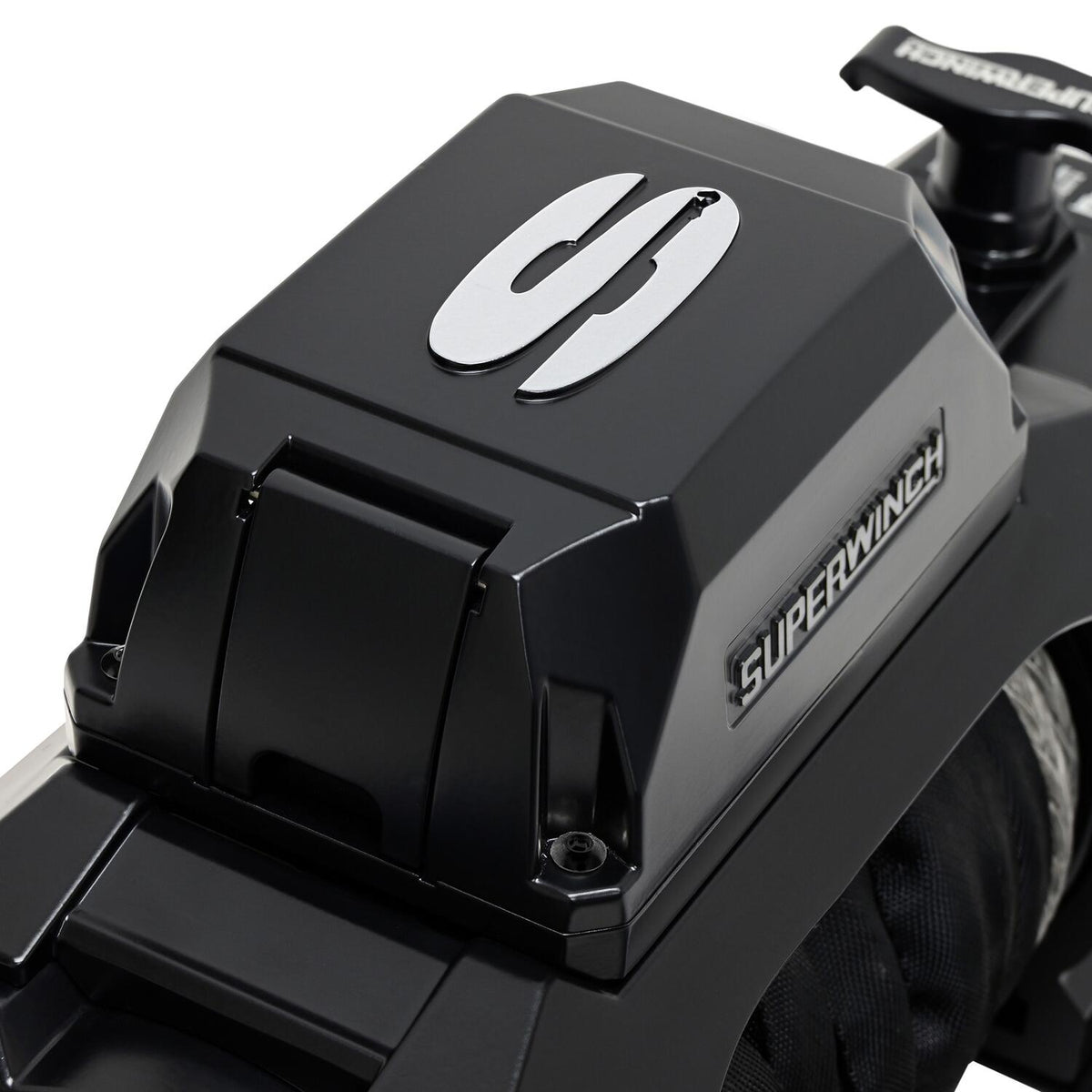

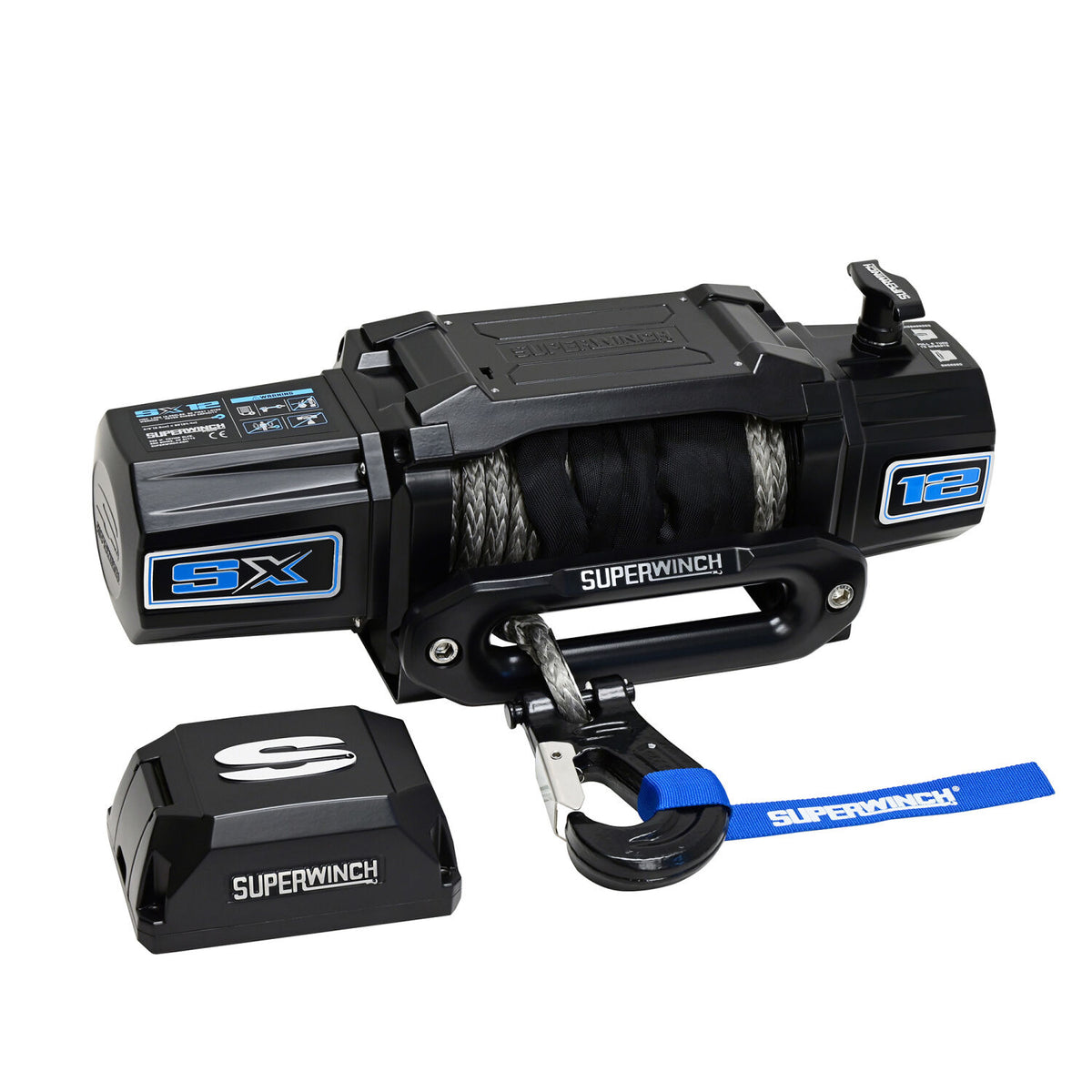

Relocatable die-cast aluminum control box

Includes wireless remote & 12' wired remote with integrated lithium-ION rechargeable LED flashlight

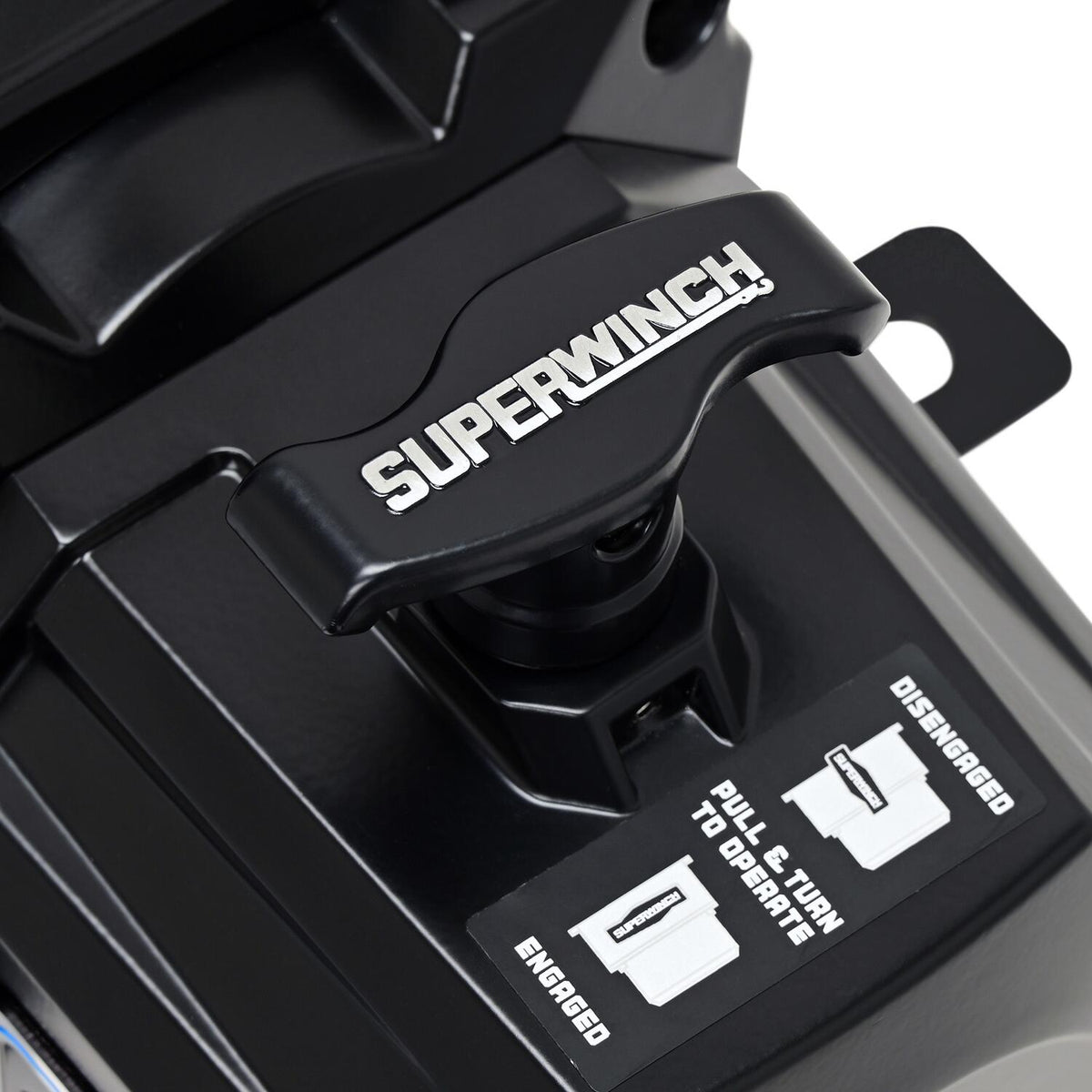

Ergonomic pull-and turn clutch handle

Clockable gear box

3-stage planetary gearing with 231:1 ratio

Patented drum light

Drum diameter measures 2.5"

Heavy duty clevis winch hook

Aluminum hawse fairlead

100% full load holding automatic mechanical brake

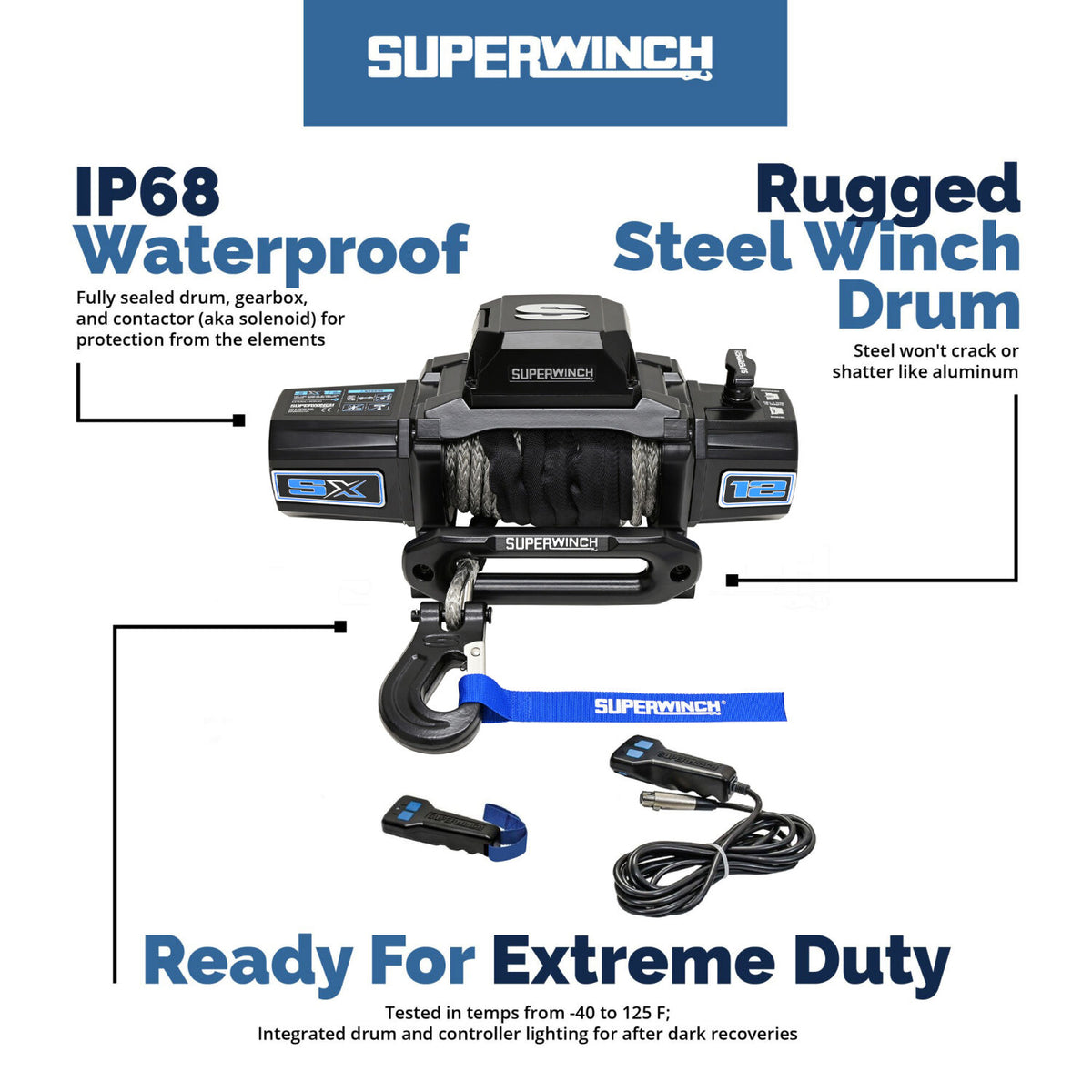

IP68-rated waterproof and dustproof

Durable metallic graphite powder coat finish

Specifications
MPN
1712204
UPC

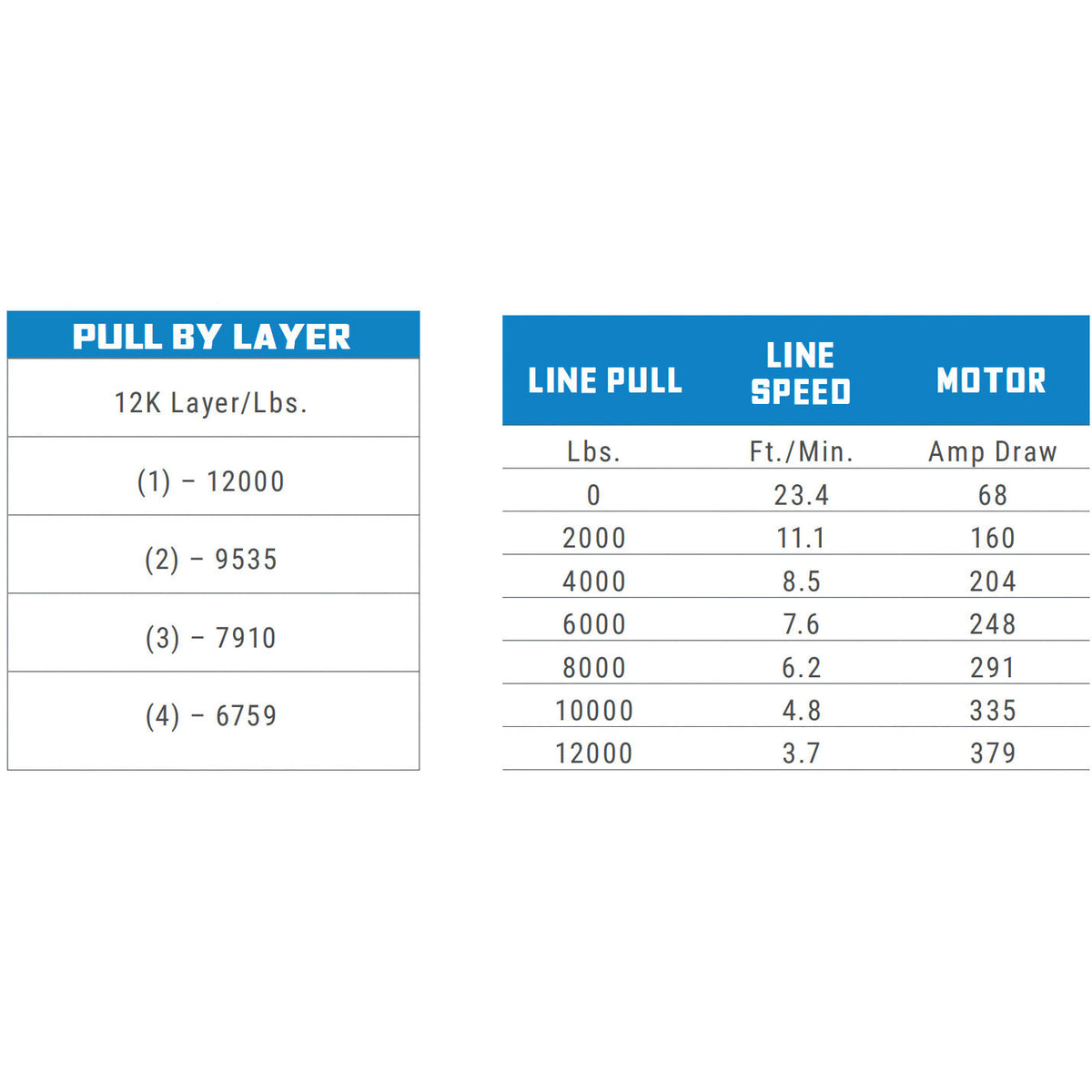

Rated Line Pull
7,500 - 12,500 lbs
Rope Material
Synthetic
Weight
62.0000
Width
13.00
Height
12.00
IP Rating
IP68 Waterproof and Dustproof
Motor
6.0 HP, 12V DC
Remote Type
Wire and Wireless
Control Box
Relocatable Die-Cast Aluminum
Winch Hook
Heavy-Duty, Clevis Pinned Latched
Task Lighting
Patented drum light
Mounting Type
Bolt-On
Condition
New
Winch Series
SX Series
Winch Type
Electric
Installation
Installation PDF
https://www.westinautomotive.com/images/ePIM/original/1710200.pdf

WARRANTY

Limited Lifetime Mechanical/Limited 7 Year Electrical

Innovative

PATENTED DRUM LIGHT

THe Future is here.


SX Winches are equipped with Superwinch’s patented drum light, engineered to provide critical visibility exactly where it matters most—at the rope and drum. Integrated directly into the winch housing, the drum light illuminates the fairlead, rope layers, and spool during operation, making low-light recoveries safer, faster, and more controlled. Whether you’re winching at dusk, in dust, or after dark, the patented drum light helps ensure proper rope alignment and confident operation when conditions are at their worst.

Included

WIRELESS HANDHELD REMOTE

No wire, no problem.

Every SX Winch comes standard with an additional wireless remote, giving you the freedom to operate your winch from a safe distance with clear line-of-sight to the recovery. Designed for reliability in demanding conditions, the wireless remote allows for precise control during solo recoveries or complex pulls, while eliminating the limitations of being tethered to the vehicle. When positioning and visibility matter most, the included wireless remote adds an extra layer of convenience, safety, and confidence to every recovery.
