Superwinch

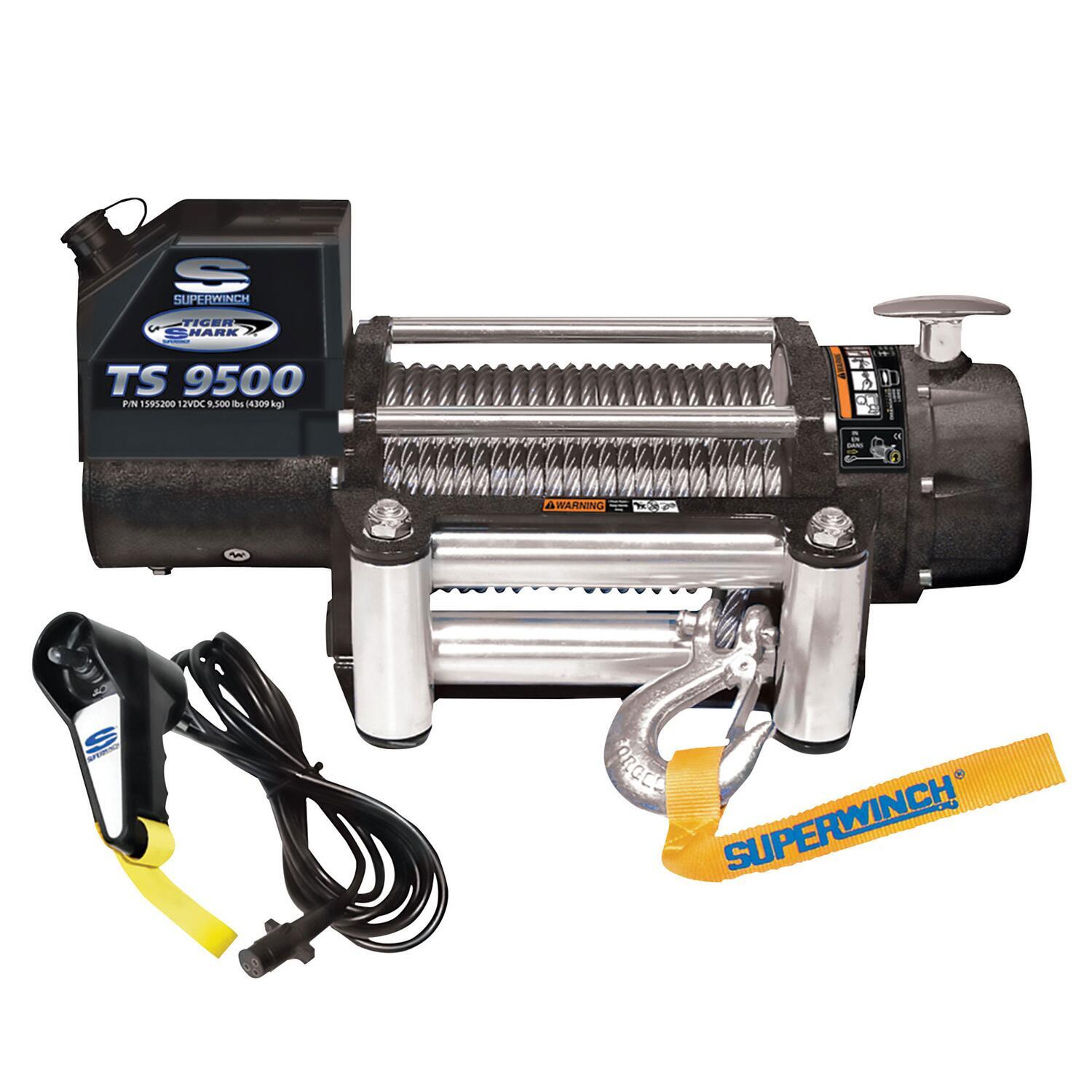

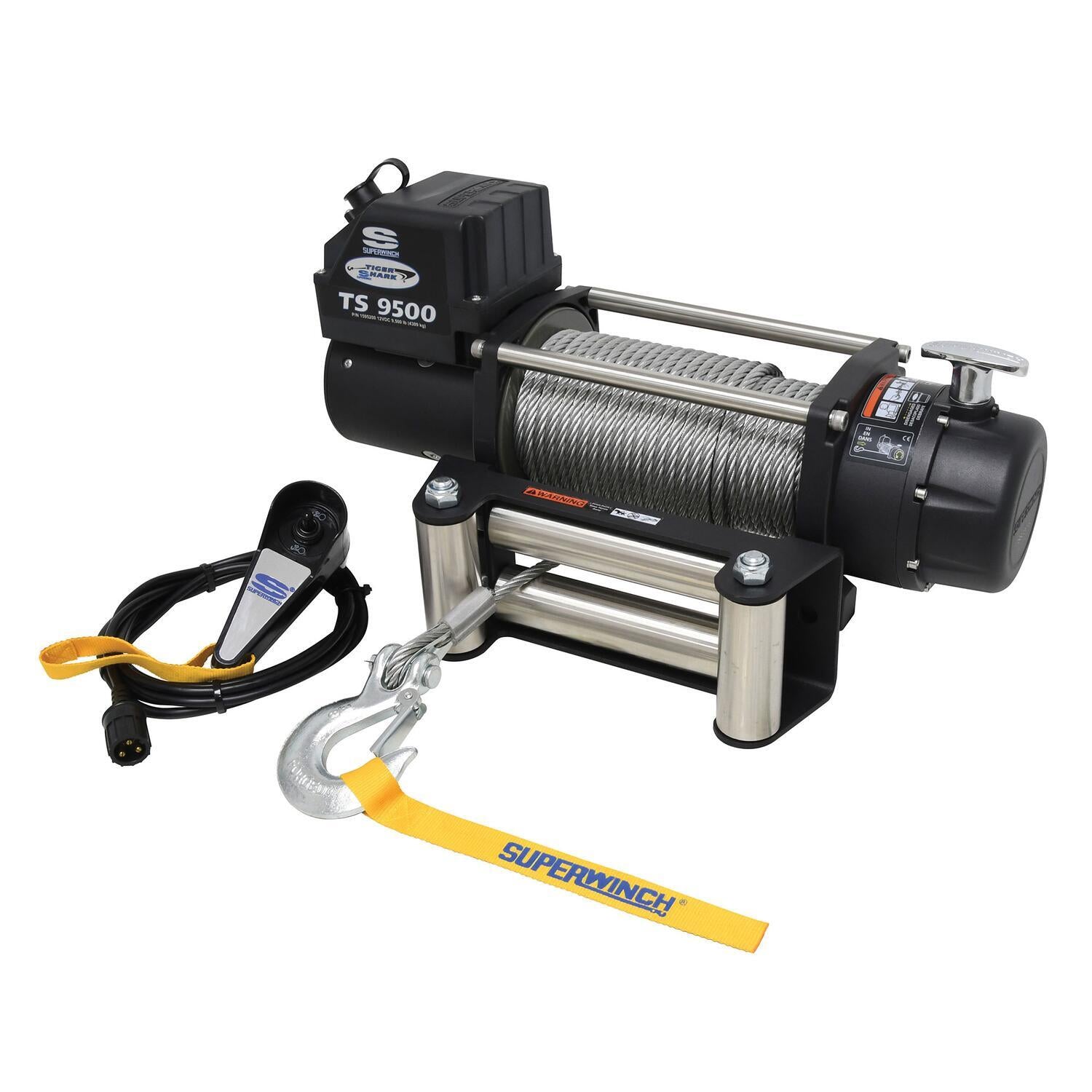

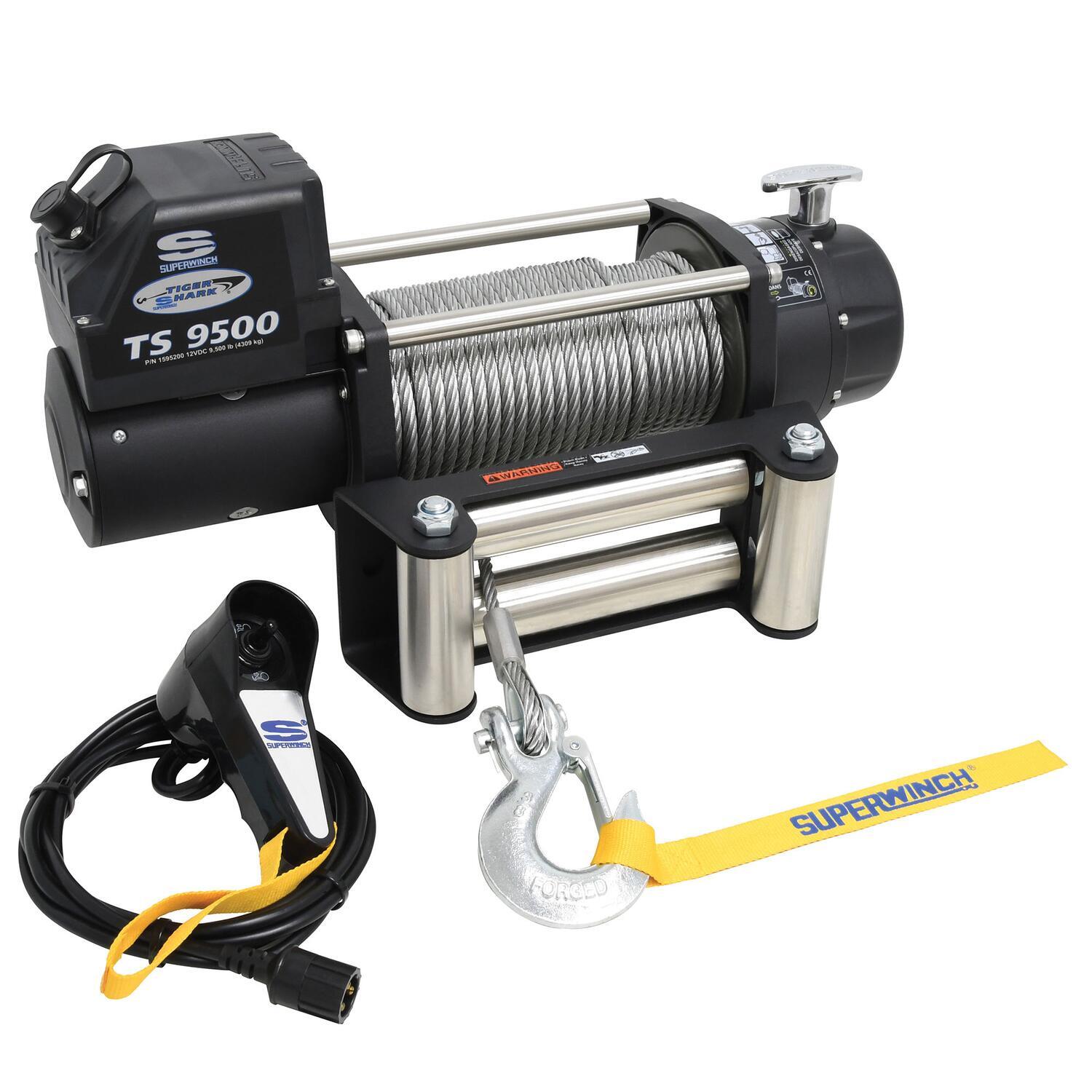

Tiger Shark 9500 9500lb 12V DC Winch with Steel Wire Rope Black - 1595200

SKU:1595200

Regular price: $ 663.99
Sale price: $ 663.99
Regular price: $ 830.00

One of Superwinch's most popular winches, the Tiger Shark 9500 is the benchmark for performance winching while not br...

In Stock. Ships in 24-48 hours

Description

One of Superwinch's most popular winches, the Tiger Shark 9500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears, to long-life stainless steel parts, the Tiger Shark 9500 stands out from the competition.

FEATURES

Rated line pull of 9,500 lbs
5.2 HP motor
3-Stage planetary gearing with 218:1 ratio

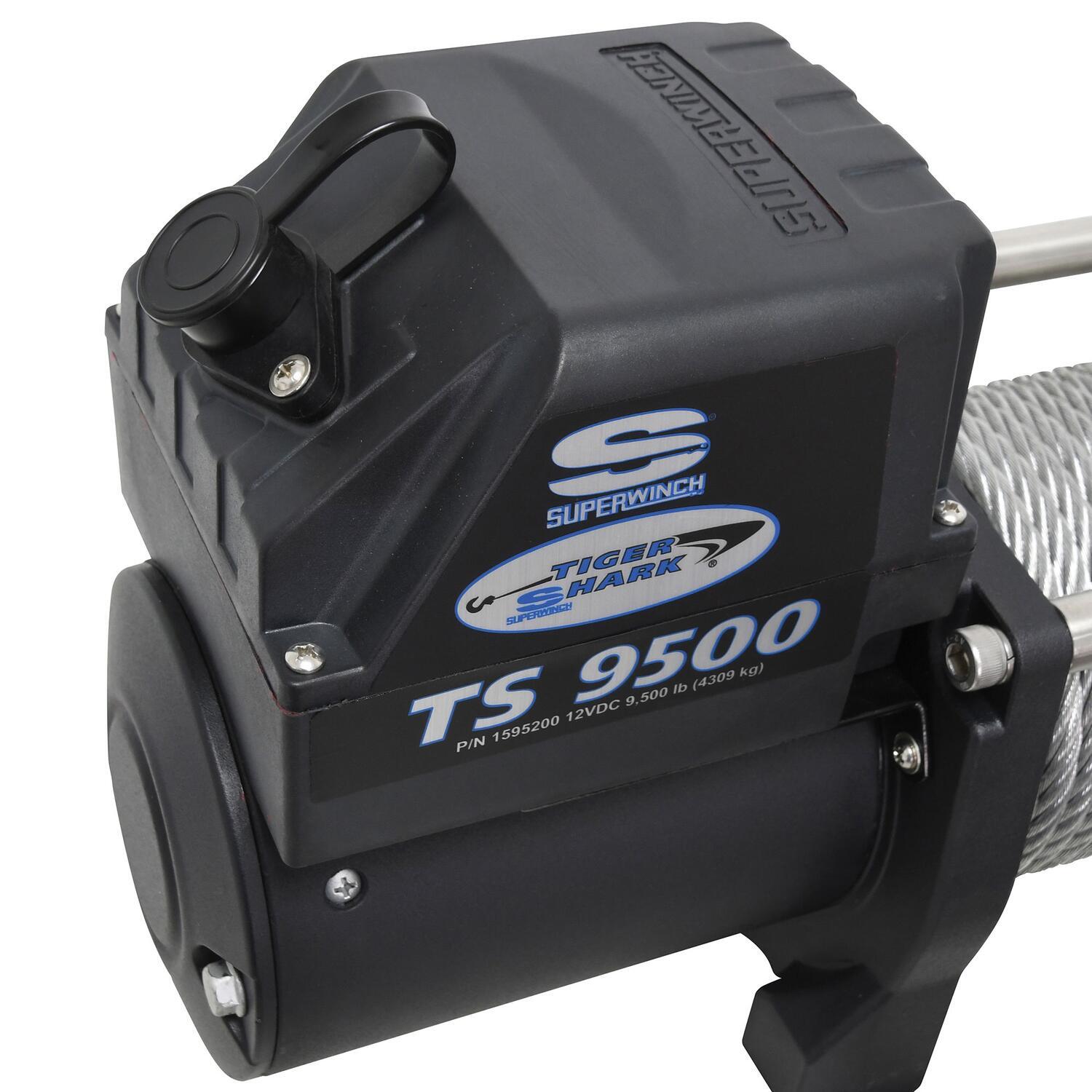

Weather sealed solenoid
Heat insulated first layer
Ergonomic pull and turn freespool (wire rope)

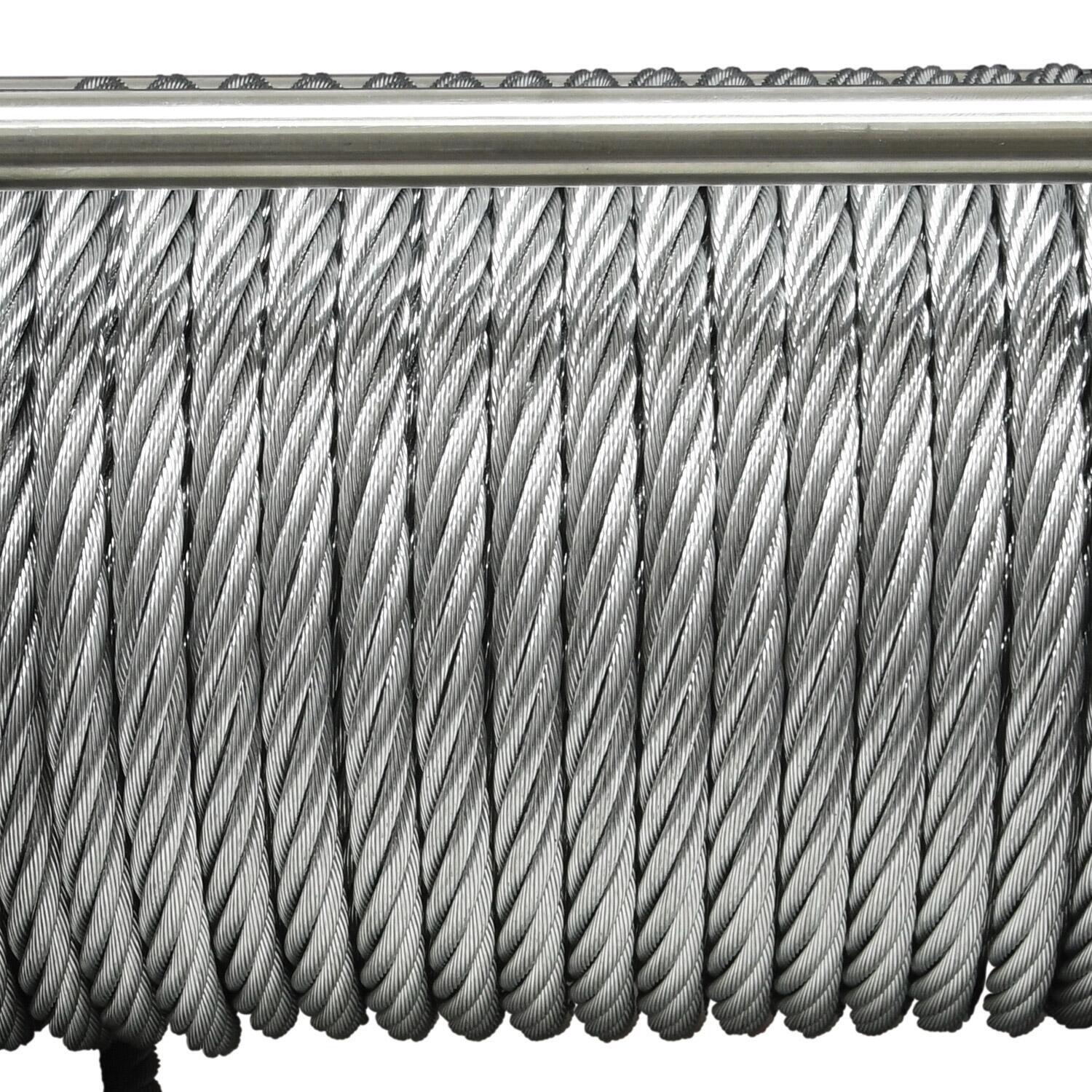

95 ft. x 21/64 in. wire rope

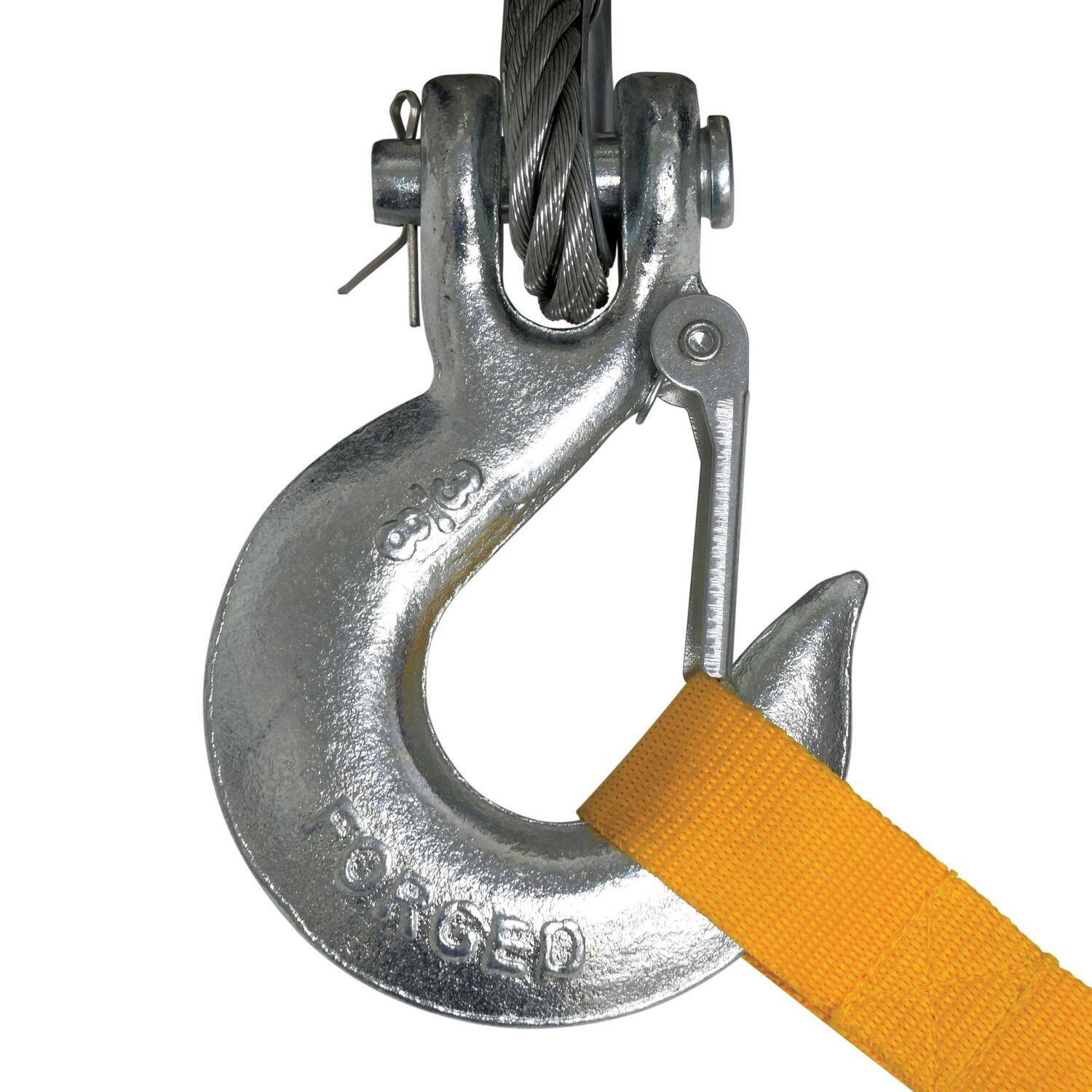

Heavy-duty, clevis pinned, latched hook
Stainless steel 4-way roller fairlead (wire rope)
Rugged handheld remote control
Stainless steel tiebars

Specifications

MPN	1595200
Winch Type	Electric
Rated Line Pull	7,500 - 12,500 lbs
Voltage	12V DC
Motor	Series wound 5.2 HP/3.8KW, 12V DC
Gear System	3-stage planetary
Gear Ratio	218:1

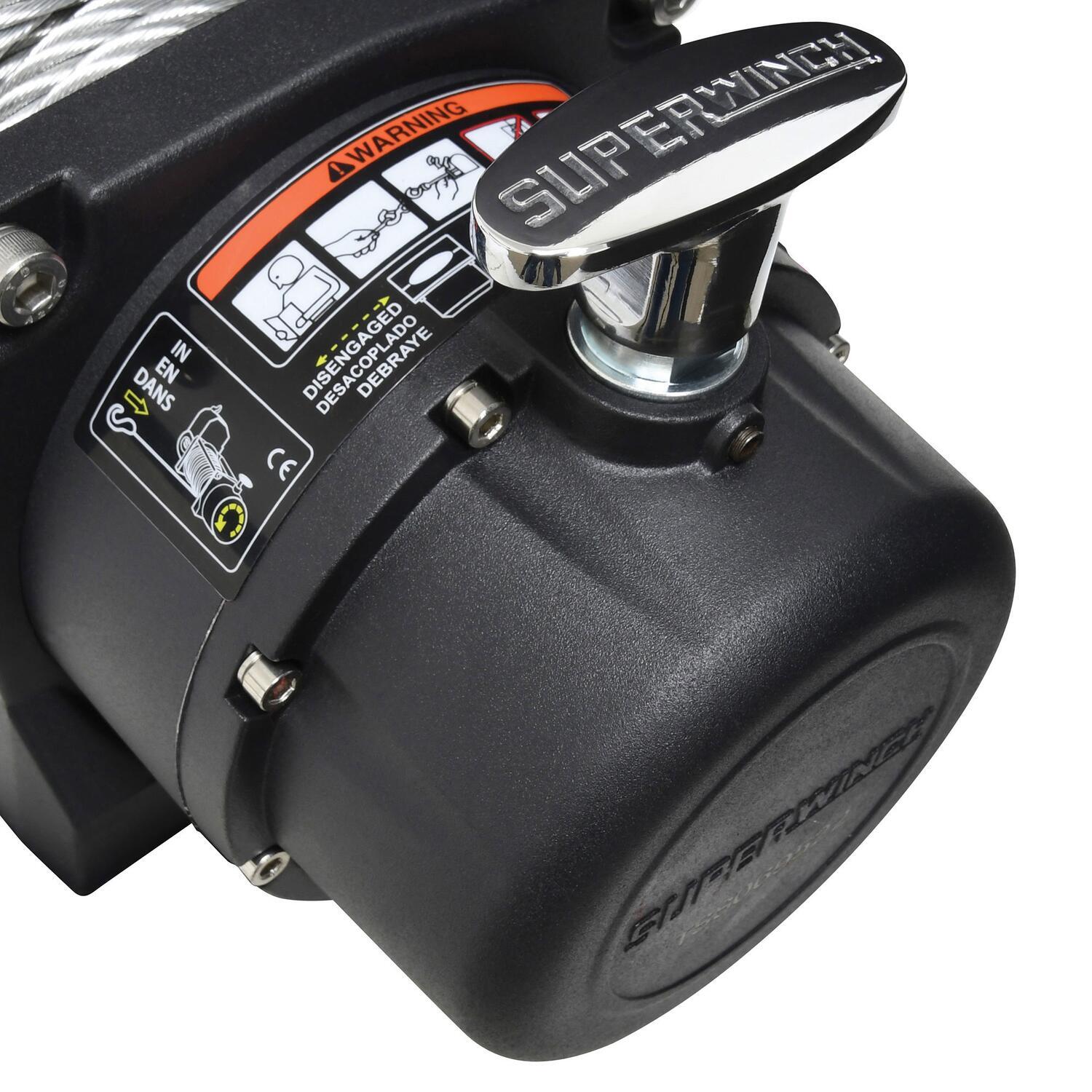

Clutch	Ergonomic pull and turn
Brake System	Mechanical, Automatic Load Holding
Rope Material	Steel Wire
Rope Length	21/64 in x 95 ft (8.3mm x 29m)
Fairlead	Stainless Steel 4-Way Roller
Remote Type	Wire

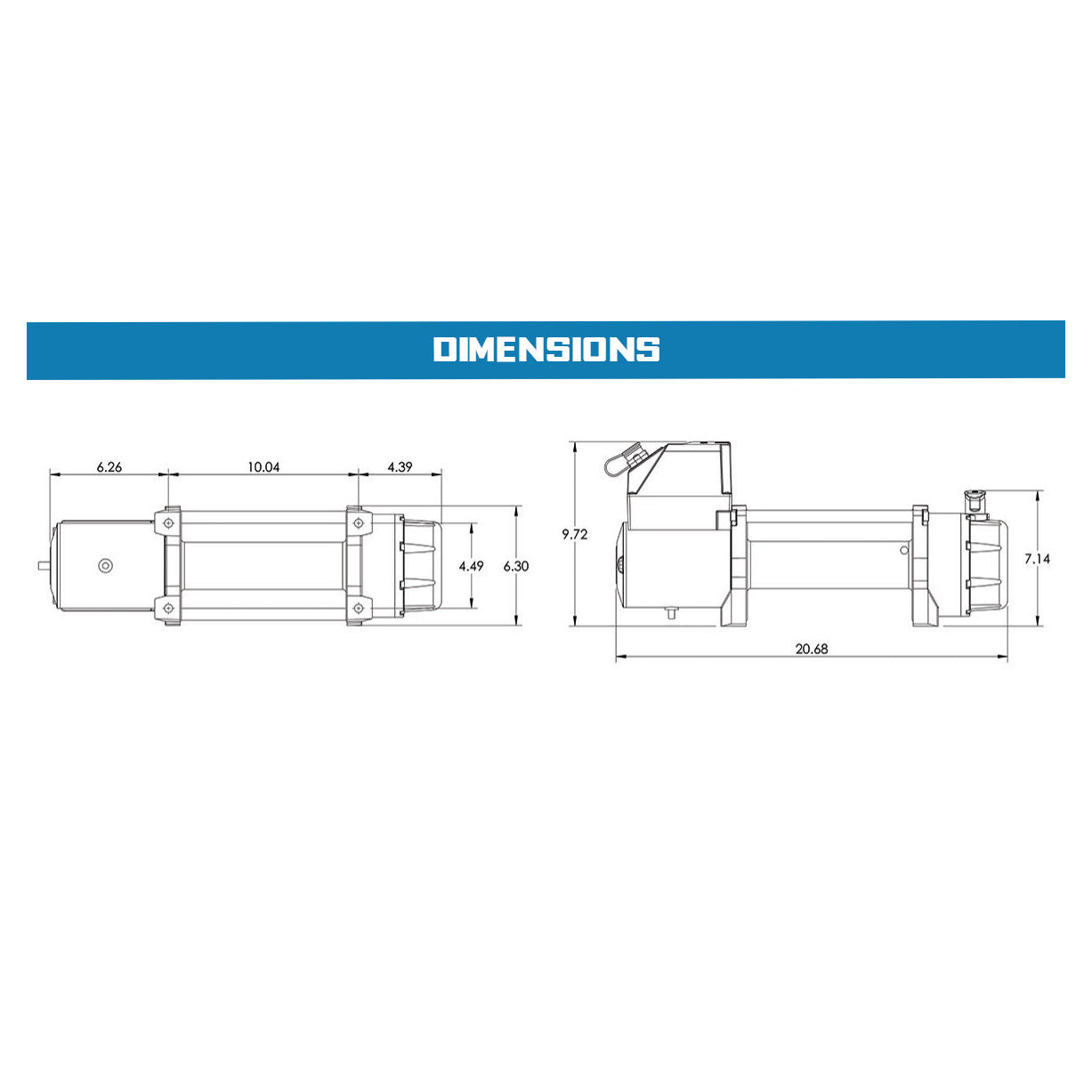

Mounting Bolt Pattern	10in x 4.5in (254mm x 114.3mm)
Color	Black
Drum	Durable fully welded steel drum
Winch Hook	Heavy-Duty, Clevis Pinned Latched

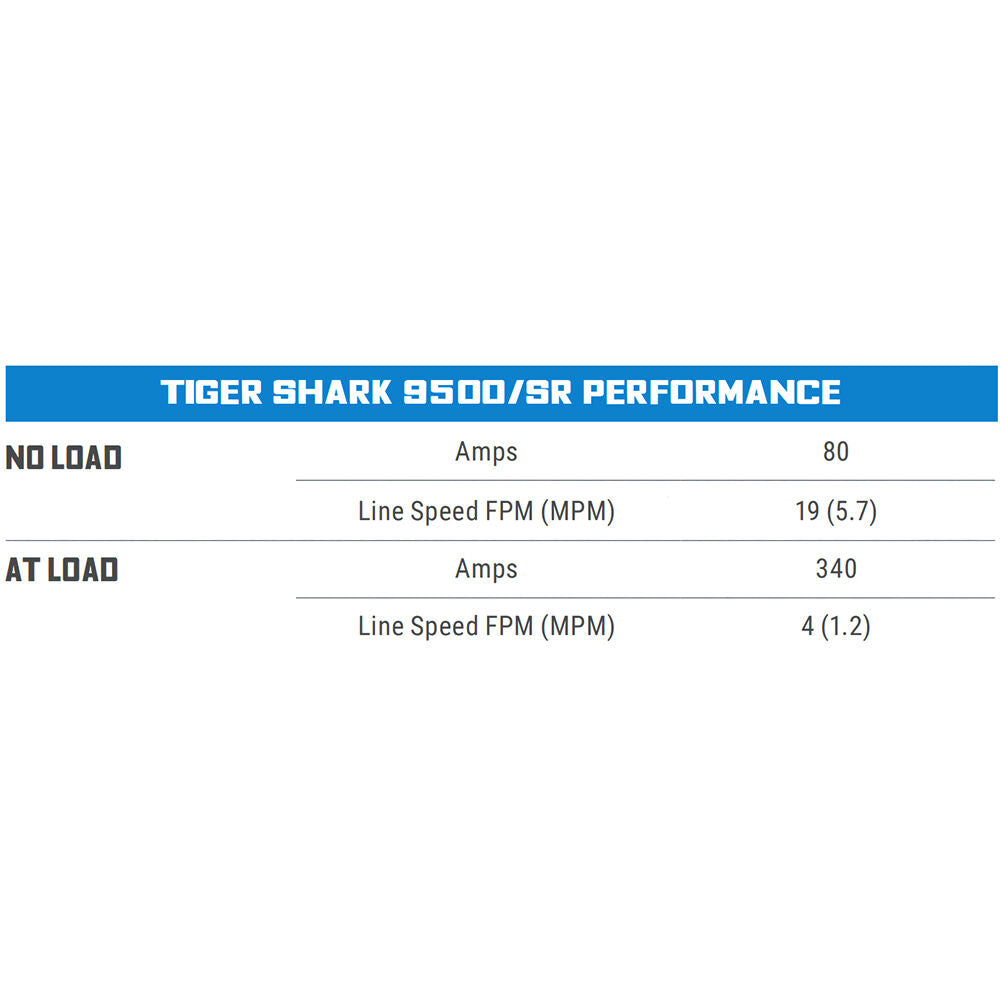

Line Speed	80 Amps Motor Draw/19 FPM (5.7 MPM)
Weight	82.0000
Width	12.00
Height	12.00
