Description
Winch

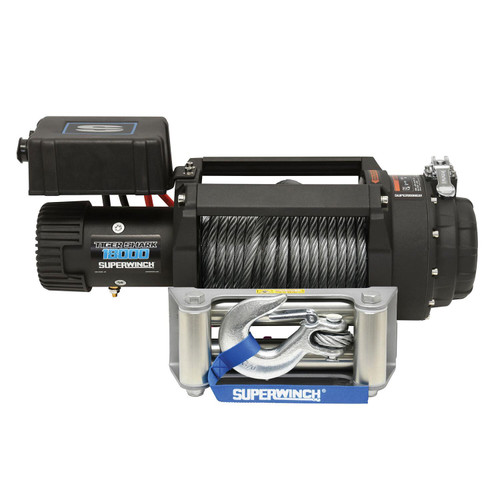

Tiger Shark 18000SR
Tiger Shark 18000SR; 18000 lbs.; 12 VDC; 1/2 in. x 90 ft. Synthetic Rope; Handheld Remote Control; 6.8 HP; Automatic Cone Brake 3-Stage Planetary; 345:1 Gear Ratio;
- Rated Single Line Pull (lbs.): 18000
- Voltage: 12 DC
- WARNING CA Proposition 65: Yes
- WARNING CA Proposition 65 Message: Cancer and Birth Defect
- 18000 lbs. Capacity/6.8 Hp Motor
- 3-Stage Planetary Gearing With 345:1 Ratio
- Automatic Cone Brake
- Aluminum Hawse Fairlead
- Heat Insulated First Layer
- Kick-N-Flip Style Freespool Allows Hand And Foot Operation
- Optional Wireless Remote Control Sold Separately [Part No. 2277]
- Includes Mounting Hardware
- Textured Black Finish
The Tiger Shark 18000 from Superwinch is built to handle the toughest heavy duty commercial winching tasks imaginable. Engineered for a wide variety of job demands, the Tiger Shark 18000 is highly dependable and easy to use in situations that require increased pulling power for higher GVW vehicles, trailers, and roll-off container applications. The Tiger Shark 18000 offers many key advantages over the competition, combining higher pulling capacity and faster line speeds, 30' handheld wired remote for ease of operation and your choice of wire or synthetic rope. The new Tiger Shark 18000 also features a dependable and easy to operate "Kick-N-Flip" style clutch, and the sleek stylish design offers an 18 pound weight savings over similar competitive brands. Protected by a rugged textured-black finish, and backed by an industry leading warranty protection plan, the Tiger Shark 18000 will provide users with long lasting, reliable, heavy-duty performance. (Limited Lifetime Mechanical, & 3 year Limited Lifetime Electrical Warranty)
Headquartered in San Dimas, California, Superwinch is the largest privately held designer, manufacturer and marketer of winch systems and accessories in the world. The Company produces a large variety of winch products including electric winches, power drives, hydraulic winches, accessories, parts and hubs that are sold to both the consumer and industrial end-markets. The Company's winches have an outstanding reputation in the marketplace for their superior design, reliability and value proposition and have established a loyal following among off-road enthusiasts and industrial OEMs alike.
Specifications
- SKU:
- 1518001
- UPC:
- 022705005852
- Condition:
- New
- Weight:
- 106.00 LBS
- Width:
- 12.00 (in)
- Height:
- 16.00 (in)
- Depth:
- 28.00 (in)
- Capacity:
- 18000
- Size:
- 18,000lbs
- Jobber Price:
- 1349.00
- MSRP:
- 1349.00
- MAP Price:
- 1348.99
- Bullet Point 1:
- 18,000 lbs. capacity
- Bullet Point 2:
- 6.8 HP motor
- Bullet Point 3:
- 3-Stage planetary gearing with 345:1 ratio
- Bullet Point 4:
- Automatic cone brake
- Bullet Point 5:
- Aluminum hawse fairlead (synthetic rope)
- Color:
- Black
- Material:
- Steel
- Surface Finish:
- Powder Coated
- Drum:
- Durable fully welded steel drum
- Fairlead:
- Aluminum hawse
- Gear Ratio:
- 345:1
- Gear System:
- 3-stage planetary
- Rope Length:
- 33/64 in x 79 ft (13mm x 24m)
- Rope Material:
- Synthetic
- Warranty:
- Other
- Bullet Point 6:
- Heat insulated first layer
- Bullet Point 7:
- Kick-N-Flip style freespool allows hand and foot operation
- Bullet Point 8:
- 30 ft. handheld wired remote control
- Bullet Point 9:
- Optional wireless remote control - sold separately (part no. 2277)
- Bullet Point 10:
- Heavy-duty, clevis pinned, latched hook
- Winch Series:
- Tiger Shark Series
- Voltage:
- 12V DC
- Rated Line Pull:
- 12,500 + lbs
- Winch Type:
- Electric
- Application:
- Heavy Duty Frame
- Installation PDF:
- https://www.westinautomotive.com/images/ePIM/original/75-1518000-RevB.pdf
- Bullet Point 12:
- Textured black finish
- Bullet Point 11:
- Includes mounting hardware
- Drum Size:
- 3.5in x 8.8in (88mm x 223mm)
- Battery Single (Recommended Capacity):
- 650 CCA minimum (Dual 12V 600 CCA recommended)
- Winch Hook:
- Heavy-Duty, Clevis Pinned Latched
- Remote Type:
- Wire
- Remote Control:
- 30 ft Hand-held remote control
- Motor:
- Series wound 6.8 HP/5.0KW, 12V DC
- EN Compliant:
- No
- Clutch:
- Kick-n-flip
- Brake System:
- Automatic cone brake
- Winch Model:
- Tiger Shark 18000 Series
- Winch Fitment:
- Tiger Shark 18000
