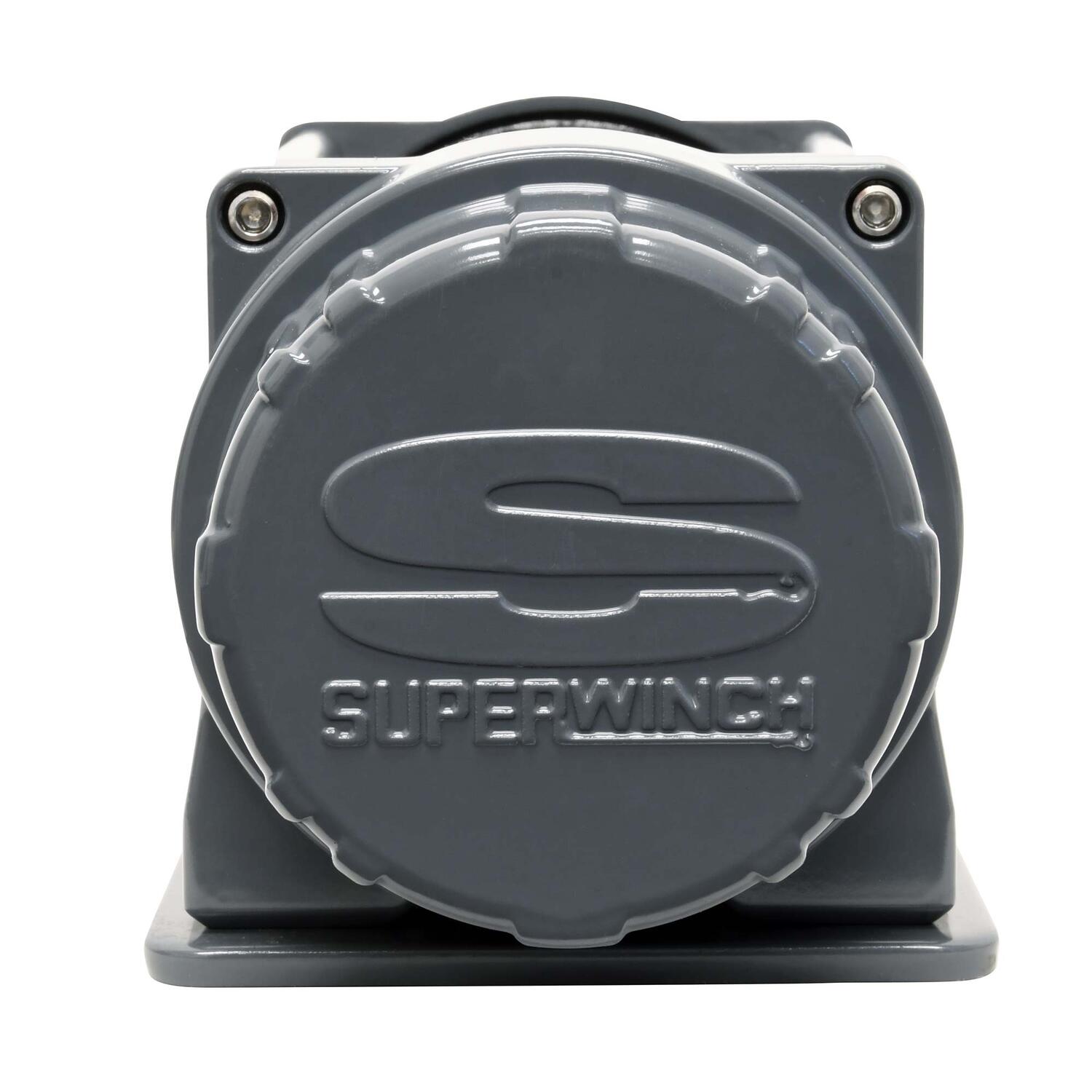

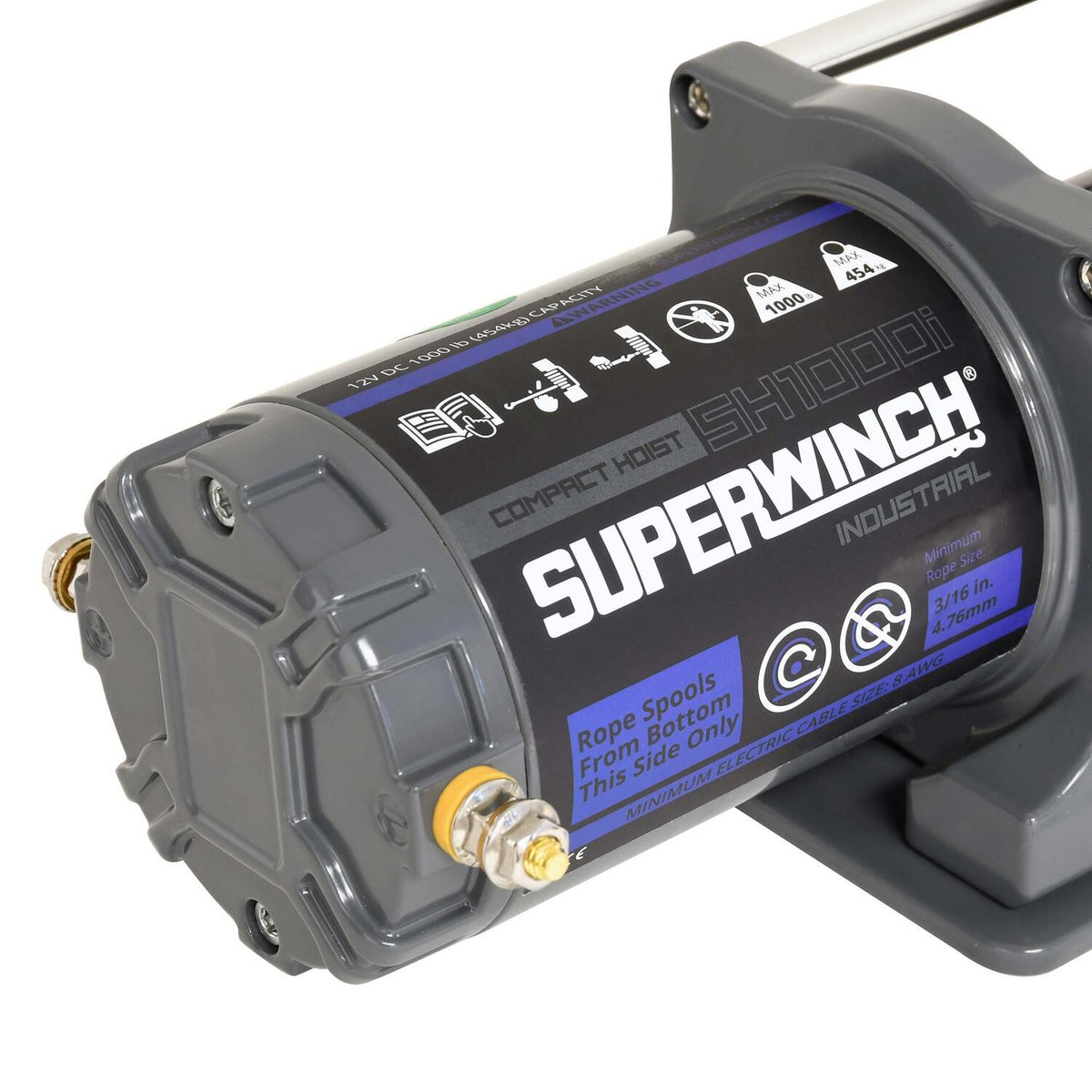

Superwinch

SH1000i 1000lbs 12V DC Hoist Textured Gray - S104103

SKU:S104103

Regular price: $ 350.99
Sale price: $ 350.99
Regular price: $ 438.75

Superwinch's SH1000i Hoist is a great solution for a wide variety of jobs. Designed to lift and hold a full 1,000 lbs...

In Stock. Ships in 24-48 hours

Description

Superwinch's SH1000i Hoist is a great solution for a wide variety of jobs. Designed to lift and hold a full 1,000 lbs. payload, the SH1000i Hoist is an outstanding choice for do-it yourself mechanics, handyman work, and an array of construction jobs and other tasks. Works anywhere you have a 12 volt battery source, to power the robust 1.8 HP 12V DC motor. The compact design is powerful and built with a limited 2 year warranty.

FEATURES

1,000 lbs. capacity
1.8 hp 12V DC motor
Permanent magnetic motor provides dynamic breaking
3-Stage planetary gearing with 138:1 ratio

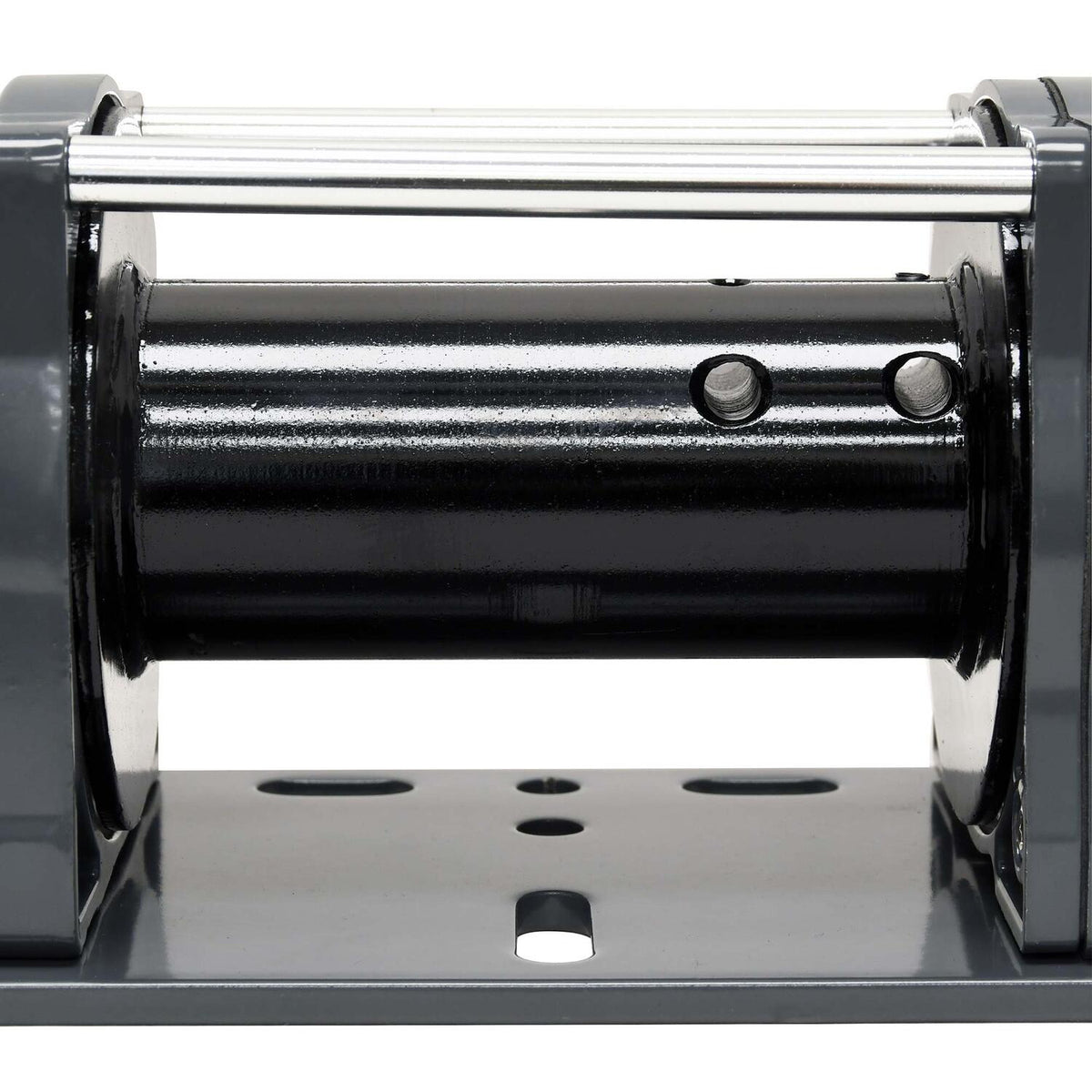

Standard drum
4:1 safety factor
IP66 protection from water and dust

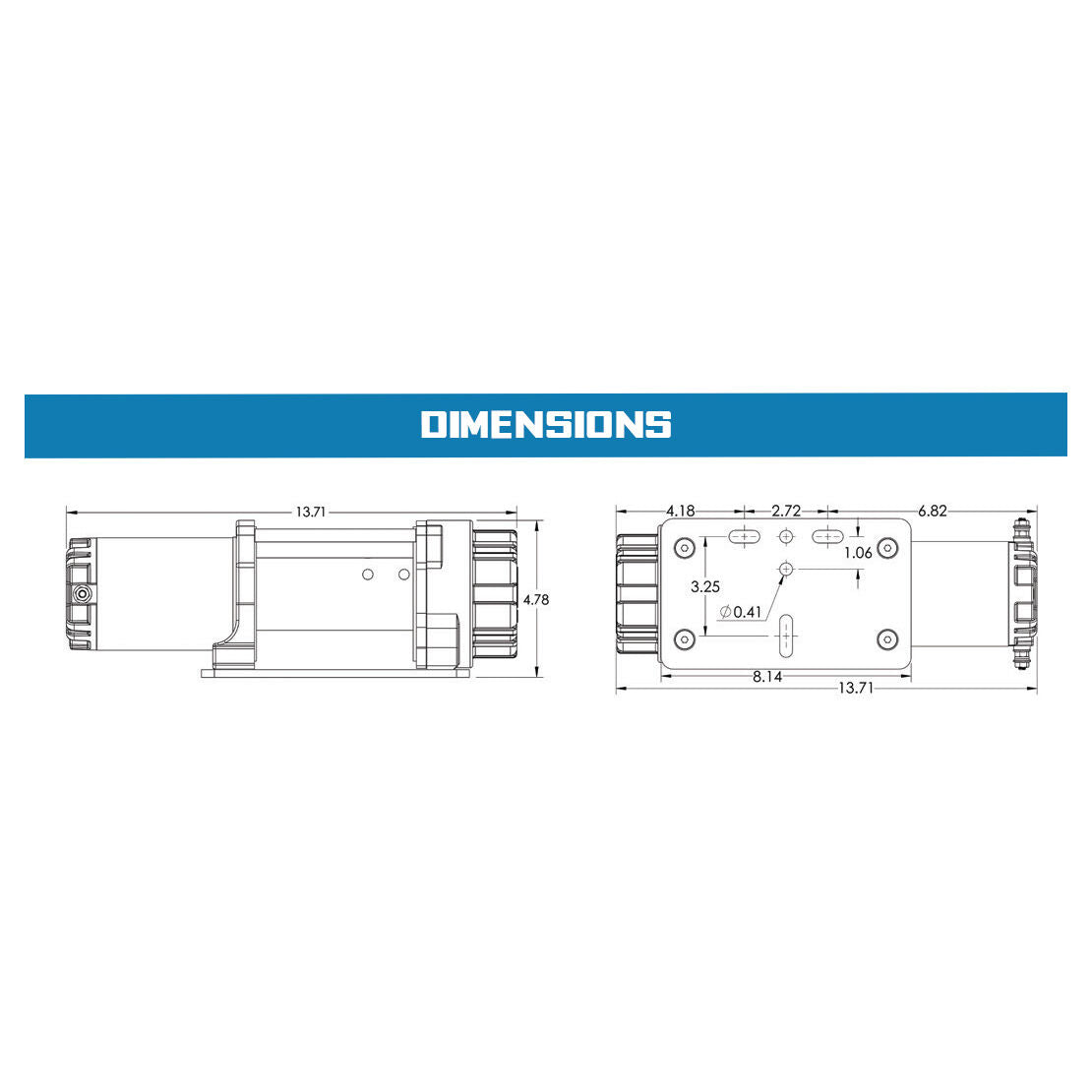

2-hole mounting bolt pattern 3.1" on center

SPECIFICATIONS

MPN	S104103
Mounting Type	Bolt-On
Rated Line Pull	1,000 - 2,500 lbs
Voltage	12V DC
Motor	1.8 HP, permanent magnet motor, 12V DC
Gear System	3-stage planetary
Gear Ratio	198:1
Brake System	Automatic
Rope Length	Minimum 3/16 in. (4.76mm)
IP Rating	IP66 Waterproof and Dustproof
Mounting Bolt Pattern	2-Hole pattern 3.1in on center
Color	Textured Gray
Weight	20.0000
Width	7.00
Height	7.00
